Magstripe Interfacing - A Lost Art

by Acidus

Intro

Just like Sun Microsystems, people have been forecasting the death of magstripes for years.

Yet they are still the most common form of physical authentication in the world.  Their wide-spread deployment makes components for them cheap, and home-brewed applications limitless.  While there is a great wealth of knowledge on the Internet about magstripes, most are over six years old, mostly for very specific microcontrollers, or have out of date source code with no comments.  Straight answers about how magstrips work and how to interface to a modern PC simply don't exist.  I plan to correct that.

Brief History

Count Zero wrote the definitive work on magstripes in November of 1992 for Phrack, Issue #37, entitled "Card-O-Rama: Magnetic Stripe Technology and Beyond."  While an excellent work, discussing the physical characteristics of magstripes, as well as how the data in encoded on them, it contains no information about how interfacing to magstripe readers.  While several people have published works on readers and copiers, the definitive guide on interfacing readers to computers was written by Patrick Gueulle in June of 1998 entitled "Interfacing a TTL Magcard Reader to the PC Game Port."  This work is extremely short, with no explanation of its Pascal source code.

It has be over six years since someone wrote something of substance about magstripe interfacing.  The uncommented source code that you can find out there is so horribly dated that it will not run on any modern Windows OS (2K, XP).  This article will explain in detail interfacing a magstripe to a computer, explain how to control it, and present easily ported source code that people can use.

Magstripe Basics

Refer to the Phrack article for much more information about this subject.

Magstripes consist of several magnetic particles held to a PVC card with a glue, and the orientation of these particles (and their magnetic fields) is how the data is stored.  Magstripes can contain several tracks of information, each 0.110 inches wide.  These tracks are defined by several standards; we are most interested in Track 2.

This is the most widely used track, having been standardized by the American Bankers Association.  This track contains up to 40 characters from a 16 character set.

So how is the magnetic representation understood by computers?  Well, the reader contains a head which outputs an analog signal of the magnetic fluxes on the card.  A specialized chip, called an F2F decoder, converts these signals into digital outputs.  Interfacing directly to the analog signals would be insane, and F2F chips are critical for easy interfacing.  Each F2F chip needs 5 volts (5 VDC) and a ground (GND) as inputs, and for output has a Card Present (CP) line, as well as 1-3 pairs of Clock (CLK) and Data (DATA) lines, one pair for each track the reader supports.

These F2F chips decode the magstripe data of each track as bit stream, using the CLK and DATA line.  When the CLK line goes high, DATA line is the value of that bit (low = "0", high = "1").  The CP line goes high when the reader detects that a card is being swiped through it.  We will not use the CP line in our implementation.

Our Approach

Using an F2F chip, we can read the bit stream of the data on the card.  From the ABA standard, we know how those bits represent numbers and characters (shown in Figure 3).  We simply need a way for a computer to read in the bit stream, and write some software to convert it to the characters defined in the ABA standard.  The good news is readers with built in F2F chips are easy to find and pretty cheap.  They can be purchased from Digi-Key, Jameco, etc. under the name "TTL readers."  You don't want to buy the expensive readers that connect directly to a serial or parallel port, as these reader will require special software to read from them.

We are going to adapt an approach shown in the Gueulle article and interface through the game port.  This has several advantages.  The game port provides 5V and GND to run the reader without an external power supply; its has four easy to read inputs; game ports are usually free, whereas serial and parallel ports are not; and even legacy-free PCs without parallel ports, serial ports, or ISA slots still have game ports.

Parts

Getting a TTL reader is pretty easy.  Digi-Key has a large section on them.  Simply search for "mag card."  Other online stores carry them as well.  You want the simplest and cheapest one you can get.  We are only interested in Track 2 readers, we don't care about cabling for since we will make our own, and we don't want motorized readers.  We want the readers where you manually swipe the card (these are a lot cheaper).  I am a big fan of the Omron V3A family of readers, specifically the V3A-4, since it offers exactly what we need.  Expect to spend around $15 to $20.

In addition, you will need a DB-15 male connector to plug into the game port.  Make sure you don't buy a DB-15 high-density for VGA connections.  Jameco part #15034 is what you want.  You'll also need soldering tools, some wire, a hot glue gun, and some electrical tape.  I used few feet of speaker wire to connect the reader to the game port, so the reader could sit in front of the computer.

How to Interface

Make sure you can get the data sheet for your TTL reader and that it supports Track 2.  Check the manufacturer's site.  Using the pin-out from the data sheet, solder wires to the 5V, GND, DATA, and CLK pins, making sure you are using the CLK/DATA pair for Track 2 if you reader supports multiple tracks.

The contacts you have to solder to could be quite small; after soldering the wires, I covered the contacts on the reader with hot glue to make sure they wouldn't shift, break, or short each other out.  Take your time and solder carefully.

Next, solders the ends of the 5V, GND, DATA, and CLK to the DB-15 connector as shown in Figure 1.

A word of warning: not all the grounds on a game port will really be grounds.  Check using a multimeter or LED to make sure the 5V and GND going to your reader are really active.

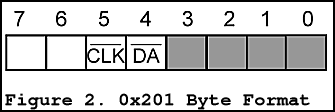

What we have done is soldered the reader outputs to the input pins on the game port that correspond to joystick buttons.  We can now access the bit stream from the F2F chip as if we are checking the status of joystick buttons!  We read from the game port by reading from I/O port 0x201.  If we wired the reader to a game port as shown in Figure 1, when we read from I/O port 0x201, we will receive a byte whose format is described in Figure 2.

Notice that the inputs are inverted.  Thus for each corresponding bit, "0" means a "1" from the card and a "1" means a "0" from the card.  How do we read a byte from port 0x201?

It varies from language to language, but is normally of the form "inputByte = INP(address)".  We then use "AND 16" to extract the DATA bit from the 5th bit of the read byte.  This gives us the bit stream.

Bit Stream Explained

The bit stream of a Track 2 magstripe card looks like this:

[leading zeros...][start][Data...][end][LRC][trailing zeros...]

The data on the card is a 16 character set, represented by five bits, four for the character, one as odd parity.  The character set for Track 2 is shown in Figure 3.

We are only interested in 0-9 and the Start, Stop, and Field characters.

They show us where in the bit stream we have valid data, and how that data is divided into fields.  The number of leading zeros and trailing zeros vary, and are there to sync the clock inside the F2F chip.

The trailing zeros are there so you can run your mag card backwards through a reader.  Please note the F2F chip doesn't look for the Start or Stop characters, or anything like that.  It simply reads the fluxes and outputs the CLK and DATA lines.  Our program must scan the stream and find the start character.  Once you find it, you know where the 5-bit boundaries are for each character, and can read the data on the card.

We are interested in all data from the Start character to the Stop character.  The Longitudinal Redundancy Check (LRC) is a checksum uses to make sure the data on the card is correct.  The source code doesn't check the LRC.  Rarely is it necessary and for the most part any problems you have will have to deal with the timing loop, as described in the next section.

Problems

Remember all those advantages for interfacing to a game port?  There is one big downside.  The game port doesn't generate an interrupt when a joystick is moved or a button is pressed.  This means in our software we have to use lots of loops when reading the bit stream so we can trap the changes of the CLK line.  To read a single data bit from the DATA line, we have to do the following:

This is a time critical loop.  The program has to catch each and every bit in real time, since the bits are not saved or cached in anyway.  If you have several programs running and your computer is off doing something else and misses a bit, the data will be wrong.

How time critical it is can vary with language and hardware.  On a Pentium 150 MHz, the PASCAL code from Luis Padilla Visdomine compiled and worked in fine in DOS, but an implementation in QBASIC, even compiled, failed.  The 3.4+ GHz machines of today should have no problem.

Lastly, a note on I/O port access.  If you want to use my VisualBASIC code and are using Win2K or XP, you will need to grab the INPOUT32.DLL.  This is a DLL that allows you to directly access I/O ports under Windows 2K and XP, which don't allow direct access like Win 9x and ME do.

Source Code Explained

VisualBASIC is used because it's easy to understand and port, and I don't want the language to interfere with the explanation.

The code is limited in that it will only deal with cards slid in the proper direction.  It is heavily commented, so here is a quick overview.

We read the DATA from the card just as described above, using a set of time critical loops.  The array is sized to 240 since we will never have more than 240 bits on Track 2.

We don't need to use the CP line, because the CLK line will not go high until a card is in the track.  After the first stage, our array contains entire bytes from port 0x201, when we only care about the Data bit.

The next stage uses "AND 16" to mask off the DATA from the 5th bit.  The array now has only 1s and 0s, the raw bit stream.

Next, we scan the array looking for 11010.  This marks the start of the data.

Once found, and we than read 5-bits at a time, looking for the end character, 11111.

When we find it, we read through the bit stream from the start character to the stop character at 5-bit intervals (since each character in the stream is 5-bits), and decode the characters using the chart in Figure 3.

We append these decoded characters to a string until we have read all the data between the Start and Stop.

Here is a sample of the decoded bit stream of an example Visa card:

Account Number:		4313 0123 4567 8901
Expires:			5/06
Output:
;4313012345678901=0506101xxxxxxxxxxxxx?

The "101" after the expiration data is common to all Visa cards.  See the references for many more examples of card formats.

Improvements

The code give here is very basic, so people can understand whats going on.  More advanced code and application are available in the references.

One of the first improvements would be allowing the card to be swiped in both directions.  You capture the bit stream the same way.  You then look for the Start character and attempt to find the End character, and then the LRC.

You then calculate the LRC to make sure the data is correct.  If any of those steps fail, simply try again going backwards through the stream.

Interrupt driven programming would also be a plus.  We didn't use the CP line because our polling method doesn't need it, and the game port doesn't have it.

Using the CP line and the CLK line, you could wire something to say the strobe line on a parallel port and trigger an interrupt so the computer doesn't have to keep polling until a card is really there.

Closing and Thanks

"If I have seen farther than others, it is only because I have stood on the shoulders of giants."  Those giants, most notably Count Zero, made this article possible.  Thanks to all the hackers who learned so much and documented their discoveries.  Please take this code and improve on it as much as you'd like.  Just remember to give credit as I have: hackers have been working on magstripes for nearly 15 years.  Swipe all the cards in your wallet, you would be amazed at the stuff you will find encoded on them.  I've found SSNs, PINs, birth dates, and more.

There is no group, there is only code.

References

Copies of most of the info from these links can be found at www.yak.net/acidus.

"Card-O-Rama: Magnetic Stripe Technology and Beyond," Count Zero, Phrack - The definitive guide on magstripes: formats, encoding, and reading.

Magnetic Stripe Reader/Writer, Luis Padilla Visdomine, www.gae.ucm.es/~padilla/extrawork/stripe.html - An excellent web page, Luis builds a mag reader and writer from scratch.  Lots of examples of card formats, rather advanced.

"Interface a TTL Magcard Reader to the PC Games Port," Patrick Gueulle, - A very short paper on PC interfacing with source code.  (MAG.EXE - Compiled version of Patrick's Pascal code)

Logix 4 U Homepage, - Contains the INPOUT32.DLL needed to directly access I/O ports using INP and OUT on Win2k and XP machines.

Most Significant Bit, Acidus, - My homepage, lots of info on a variety of subjects.

Public Function SwipeCard() As String

Dim cardOut As String 	'Will hold the final string of Card Characters
Dim cardRaw(1 To 240) As Byte 'array to hold samples each bit on the magcard.

'============================================GATHER RAW BIT STREAM
'Reads the DATA bits from the card by trapping the CLK signal

For k = 1 To 240
    Do
        DoEvents 	'VB specfic statement, lets you yield so programs doesn't
			'hog CPU. On slow/high-loaded machines this could be removed
			'to make sure time critical loop happens

	e = Inp(&H201)		'Read in byte
    Loop Until (e And 32) = 0	'wait until CLK goes high
    'since the CLK is high, DATA is valid, so save
    cardRaw(k) = e


    'wait for CLK to go low again
    Do
        e = Inp(&H201)
    Loop Until (e And 32) = 32
Next

'============================================CONVERT ARRAY TO BITSTREAM
'Since the array cardRaw has the CLK bits, DATA bits, and other junk
'we AND the DATA bit out, and set that entry in the array to the value
'of the DATA bit. All entries in cardRAW will be 0 or 1 after this

For k = 1 To 240
    cardRaw(k) = (cardRaw(k) And 16)
    If cardRaw(k) = 0 Then cardRaw(k) = 1
    If cardRaw(k) = 16 Then cardRaw(k) = 0
Next


'============================================LOCATE START AND END OF BITSTREAM
'Since cards can have any number of leading and trailing zeros, we need
'to find where start character ";" is. Then we will know where the 5 bit
boundries fall to define the characters. We also look for the End character "?"

j = 0 'start at index 0 of the array
'Loop until we find "11010" which is the start character
Do
    j = j + 1
Loop Until (cardRaw(j) = 1 And cardRaw(j + 1) = 1 And cardRaw(j + 2) = 0 And cardRaw(j + 3) = 1 And cardRaw(j + 4) = 0)

starts = j 'save its location

'Now loop through, jumping 5 bits at a time (ie 1 character at a time)
'until we find "11111" which is the end chacter
Do
	j = j + 5
Loop Until (cardRaw(j) = 1 And cardRaw(j + 1) = 1 And cardRaw(j + 2) = 1 And cardRaw(j + 3) = 1 And cardRaw(j + 4) = 1)

ends = j 'save its location

'============================================DECODE BITSTREAM TO OUTPUT STRING
'We walk through the array at 1 character at a time (5 bits at a time)
'from the start character to the end character (this ay we avoid the leading
 and trailing zeros, as well as the LRC checksum)
'We examine those 5 bits and append the appropriate character to the end of the
'string

cardOut = "" 'empty the string

For j = starts To ends Step 5 'for(j=starts;j<=ends;j+=5)

If (cardRaw(j) = 1) And (cardRaw(j + 1) = 1) And (cardRaw(j + 2) = 0) And (cardRaw(j + 3) = 1) And (cardRaw(j + 4) = 0) Then cardOut = cardOut + ";"
If (cardRaw(j) = 1) And (cardRaw(j + 1) = 0) And (cardRaw(j + 2) = 1) And (cardRaw(j + 3) = 1) And (cardRaw(j + 4) = 0) Then cardOut = cardOut + "="
If (cardRaw(j) = 1) And (cardRaw(j + 1) = 1) And (cardRaw(j + 2) = 1) And (cardRaw(j + 3) = 1) And (cardRaw(j + 4) = 1) Then cardOut = cardOut + "?"
If (cardRaw(j) = 0) And (cardRaw(j + 1) = 1) And (cardRaw(j + 2) = 0) And (cardRaw(j + 3) = 1) And (cardRaw(j + 4) = 1) Then cardOut = cardOut + ":"
If (cardRaw(j) = 0) And (cardRaw(j + 1) = 0) And (cardRaw(j + 2) = 1) And (cardRaw(j + 3) = 1) And (cardRaw(j + 4) = 1) Then cardOut = cardOut + "<"
If (cardRaw(j) = 0) And (cardRaw(j + 1) = 1) And (cardRaw(j + 2) = 1) And (cardRaw(j + 3) = 1) And (cardRaw(j + 4) = 0) Then cardOut = cardOut + ">"
If (cardRaw(j) = 0) And (cardRaw(j + 1) = 0) And (cardRaw(j + 2) = 0) And (cardRaw(j + 3) = 0) And (cardRaw(j + 4) = 1) Then cardOut = cardOut + "0"
If (cardRaw(j) = 1) And (cardRaw(j + 1) = 0) And (cardRaw(j + 2) = 0) And (cardRaw(j + 3) = 0) And (cardRaw(j + 4) = 0) Then cardOut = cardOut + "1"
If (cardRaw(j) = 0) And (cardRaw(j + 1) = 1) And (cardRaw(j + 2) = 0) And (cardRaw(j + 3) = 0) And (cardRaw(j + 4) = 0) Then cardOut = cardOut + "2"
If (cardRaw(j) = 1) And (cardRaw(j + 1) = 1) And (cardRaw(j + 2) = 0) And (cardRaw(j + 3) = 0) And (cardRaw(j + 4) = 1) Then cardOut = cardOut + "3"
If (cardRaw(j) = 0) And (cardRaw(j + 1) = 0) And (cardRaw(j + 2) = 1) And (cardRaw(j + 3) = 0) And (cardRaw(j + 4) = 0) Then cardOut = cardOut + "4"
If (cardRaw(j) = 1) And (cardRaw(j + 1) = 0) And (cardRaw(j + 2) = 1) And (cardRaw(j + 3) = 0) And (cardRaw(j + 4) = 1) Then cardOut = cardOut + "5"
If (cardRaw(j) = 0) And (cardRaw(j + 1) = 1) And (cardRaw(j + 2) = 1) And (cardRaw(j + 3) = 0) And (cardRaw(j + 4) = 1) Then cardOut = cardOut + "6"
If (cardRaw(j) = 1) And (cardRaw(j + 1) = 1) And (cardRaw(j + 2) = 1) And (cardRaw(j + 3) = 0) And (cardRaw(j + 4) = 0) Then cardOut = cardOut + "7"
If (cardRaw(j) = 0) And (cardRaw(j + 1) = 0) And (cardRaw(j + 2) = 0) And (cardRaw(j + 3) = 1) And (cardRaw(j + 4) = 0) Then cardOut = cardOut + "8"
If (cardRaw(j) = 1) And (cardRaw(j + 1) = 0) And (cardRaw(j + 2) = 0) And (cardRaw(j + 3) = 1) And (cardRaw(j + 4) = 1) Then cardOut = cardOut + "9"

Next

'Return the string
SwipeCard = cardOut
End Function

Code: SwipeCard.bas
