This archive contains pager programming/monitor software along with interface diagrams. I have not tested these but I am informed that they do the job. Use at your own risk.
So, you want to decode those pages. Well first things first you will need
the following items:
1. Scanner covering roughly 137Mhz - 154.00 Mhz and/or 454 Mhz - 467.00 Mhz
2. Interface between scanner and PC or a Sound Card (Win 95 only)
3. Suitable software
4. A PC with DOS or Win 95
Right, heres details of everything you need.
1. Scanner
Most scanners require the discriminator output, which is the unfiltered/unamplified signal from inside the scanner. This can be found in various places. Have a look in this list to see if your scanner is listed. You might like to try the headphone/speaker output instead, you may get limited results.
2. Interface

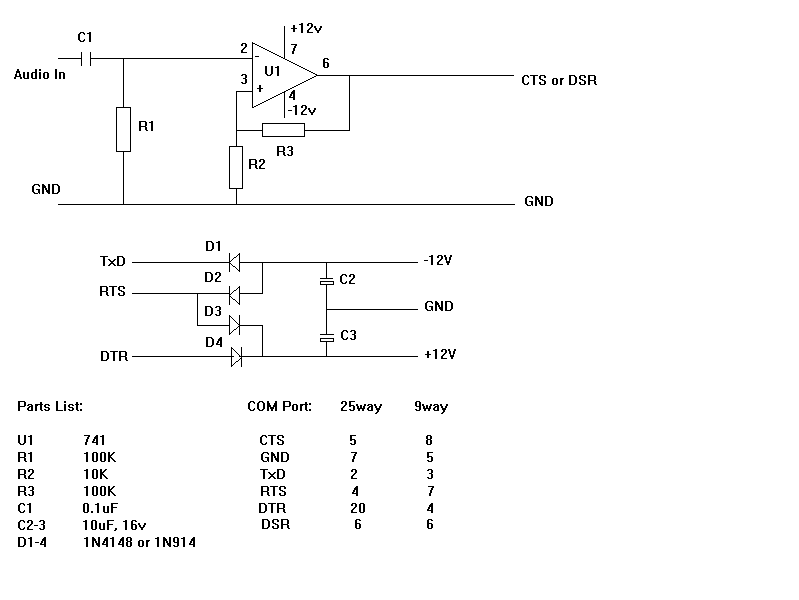

The interface is fairly simple and is powered by the serial port. It can even fit in side the serial plug casing. The diagram is available here.
The other option is to feed the scanner output directly into your sound card. This requires some Win95 only software called poc32.
3. Software
pd-204.zip Pocsag decoding software (DOS)
poc32eng.zip Pocsag decoding software
(Win95)
UK Paging Frequencies |
|||
137.9750 | Nationwide Page One (Ex Mercury) Ch2 | 153.3375 | Nationwide Paging |
138.0750 | Vodazap | 153.3500 | Nationwide Page One (Ex Mercury) Ch3 |
138.1500 | Vodazap | 153.3625 | Nationwide Paging |
138.1750 | Nationwide Page One (Ex Mercury) Ch1 | 153.3750 | Nationwide Paging |
153.0750 | Nationwide Paging | 153.4500 | Nationwide Paging |
153.1250 | Nationwide BT Pagers | 153.8250 | Northern Ireland Air Page |
153.1500 | Nationwide BT Pagers | 454.0750 | Nationwide Aircall Voice |
153.1750 | Nationwide BT Pagers | 454.2000 | Nationwide Medical Pagers |
153.2250 | Nationwide BT Pagers | 454.2375 | Northern Ireland Hospitals |
153.2375 | Nationwide Paging | 454.6750 | Nationwide Millicomm Paging |
153.2500 | Vodazap | 454.7750 | Nationwide Aircall Paging |
153.2750 | Nationwide Aircall Comms | 454.8250 | Nationwide PageBoy Paging |
153.3250 | Nationwide Aircall Comms | 466.0750 | Nationwide Hutchison Paging |
