mul and imul instructions
for extended precision multiplication. adc and sbb work),
you use the same techniques to perform extended precision multiplication
on the 80x86 that you employ when manually multiplying two values.
1) Multiply the first two 2) Multiply 5*2:
digits together (5*3):
123 123
45 45
--- ---
15 15
10
3) Multiply 5*1: 4) 4*3:
123 123
45 45
--- ---
15 15
10 10
5 5
12
5) Multiply 4*2: 6) 4*1:
123 123
45 45
--- ---
15 15
10 10
5 5
12 12
8 8
4
7) Add all the partial products together:
123
45
---
15
10
5
12
8
4
------
5535
The 80x86 does extended precision multiplication in the same manner except
that it works with bytes, words, and double words rather than digits. The

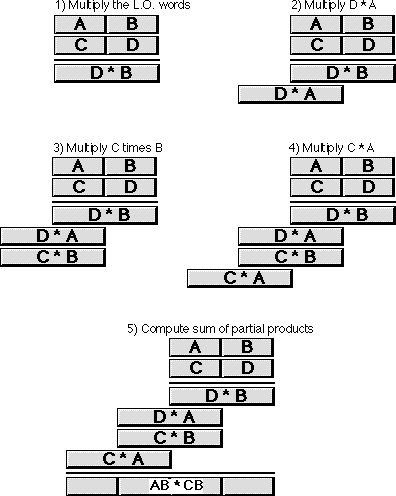

figure below shows how this works.Probably the most important thing to remember when performing an extended
precision multiplication is that you must also perform a multiple precision
addition at the same time. Adding up all the partial products requires several
additions that will produce the result. The following listing demonstrates
the proper way to multiply two 32 bit values on a 16 bit processor:
Note: Multiplier and Multiplicand are 32 bit variables
declared in the data segment via the dword directive. Product
is a 64 bit variable declared in the data segment via the qword directive.
Multiply proc near
push ax
push dx
push cx
push bx
; Multiply the L.O. word of Multiplier times Multiplicand:
mov ax, word ptr Multiplier
mov bx, ax ;Save Multiplier val
mul word ptr Multiplicand ;Multiply L.O. words
mov word ptr Product, ax ;Save partial product
mov cx, dx ;Save H.O. word
mov ax, bx ;Get Multiplier in BX
mul word ptr Multiplicand+2 ;Multiply L.O. * H.O.
add ax, cx ;Add partial product
adc dx, 0 ;Don't forget carry!
mov bx, ax ;Save partial product
mov cx, dx ; for now.
; Multiply the H.O. word of Multiplier times Multiplicand:
mov ax, word ptr Multiplier+2 ;Get H.O. Multiplier
mul word ptr Multiplicand ;Times L.O. word
add ax, bx ;Add partial product
mov word ptr product+2, ax ;Save partial product
adc cx, dx ;Add in carry/H.O.!
mov ax, word ptr Multiplier+2 ;Multiply the H.O.
mul word ptr Multiplicand+2 ; words together.
add ax, cx ;Add partial product
adc dx, 0 ;Don't forget carry!
mov word ptr Product+4, ax ;Save partial product
mov word ptr Product+6, dx
pop bx
pop cx
pop dx
pop ax
ret
Multiply endp
One thing you must keep in mind concerning this code, it only works for
unsigned operands. Multiplication of signed operands appears in the exercises.div and idiv instructions. Such an operation
must be performed using a sequence of shift and subtract instructions. Such
an operation is extremely messy. A less general operation, dividing an n
bit quantity by a 32 bit (on the 80386 or later) or 16 bit quantity is easily
synthesized using the div instruction. The following code demonstrates
how to divide a 64 bit quantity by a 16 bit divisor, producing a 64 bit
quotient and a 16 bit remainder:
dseg segment para public 'DATA'
dividend dword 0FFFFFFFFh, 12345678h
divisor word 16
Quotient dword 0,0
Modulo word 0
dseg ends
cseg segment para public 'CODE'
assume cs:cseg, ds:dseg
; Divide a 64 bit quantity by a 16 bit quantity:
Divide64 proc near
mov ax, word ptr dividend+6
sub dx, dx
div divisor
mov word ptr Quotient+6, ax
mov ax, word ptr dividend+4
div divisor
mov word ptr Quotient+4, ax
mov ax, word ptr dividend+2
div divisor
mov word ptr Quotient+2, ax
mov ax, word ptr dividend
div divisor
mov word ptr Quotient, ax
mov Modulo, dx
ret
Divide64 endp
cseg ends
This code can be extended to any number of bits by simply adding additional
mov / div / mov instructions at the beginning of the sequence.
Of course, on the 80386 and later processors you can divide by a 32 bit
value by using edx and eax in the above sequence
(with a few other appropriate adjustments).

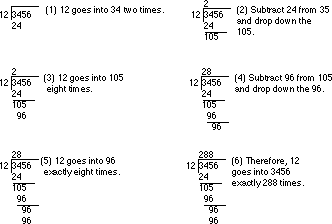

This algorithm is actually easier in binary since at each step you do not have to guess how many times 12 goes into the remainder nor do you have to multiply 12 by your guess to obtain the amount to subtract. At each step in the binary algorithm the divisor goes into the remainder exactly zero or one times. As an example, consider the division of 27 (11011) by three (11):
There is a novel way to implement this binary division algorithm that computes the quotient and the remainder at the same time. The algorithm is the following:
Quotient := Dividend; Remainder := 0; for i:= 1 to NumberBits do Remainder:Quotient := Remainder:Quotient SHL 1; if Remainder >= Divisor then Remainder := Remainder - Divisor; Quotient := Quotient + 1; endif endfor
NumberBits is the number of bits in the Remainder, Quotient,
Divisor, and Dividend variables. Note that the Quotient
:= Quotient + 1 statement sets the L.O. bit of Quotient
to one since this algorithm previously shifts Quotient one
bit to the left. The 80x86 code to implement this algorithm is
; Assume Dividend (and Quotient) is DX:AX, Divisor is in CX:BX,
; and Remainder is in SI:DI.
mov bp, 32 ;Count off 32 bits in BP
sub si, si ;Set remainder to zero
sub di, di
BitLoop: shl ax, 1 ;See the section on shifts
rcl dx, 1 ; that describes how this
rcl di, 1 ; 64 bit SHL operation works
rcl si, 1
cmp si, cx ;Compare H.O. words of Rem,
ja GoesInto ; Divisor.
jb TryNext
cmp di, bx ;Compare L.O. words.
jb TryNext
GoesInto: sub di, bx ;Remainder := Remainder -
sbb si, cx ; Divisor
inc ax ;Set L.O. bit of AX
TryNext: dec bp ;Repeat 32 times.
jne BitLoop
This code looks short and simple, but there are a few problems with it.
First, it does not check for division by zero (it will produce the value
0FFFFFFFFh if you attempt to divide by zero), it only handles unsigned values,
and it is very slow. Handling division by zero is very simple, just check
the divisor against zero prior to running this code and return an appropriate
error code if the divisor is zero. Dealing with signed values is equally
simple, you'll see how to do that in a little bit. The performance of this
algorithm, however, leaves a lot to be desired. Assuming one pass through
the loop takes about 30 clock cycles[2], this
algorithm would require almost 1,000 clock cycles to complete! That's an
order of magnitude worse than the DIV/IDIV instructions on the 80x86 that
are among the slowest instructions on the 80x86.Divisor is zero).
In this special case, that occurs frequently, you can use the DIV instruction
which is much faster.
