15.1.4 The MOVS Instruction
The movs instruction takes four basic forms. Movs
moves bytes, words, or double words, movsb moves byte
strings, movsw moves word strings, and movsd moves
double word strings (on 80386 and later processors). These four instructions
use the following syntax:
{REP} MOVSB
{REP} MOVSW
{REP} MOVSD ;Available only on 80386+
{REP} MOVS Dest, Source
The movsb (move string, bytes) instruction fetches the byte
at address ds:si, stores it at address es:di,
and then increments or decrements the si and di registers
by one. If the rep prefix is present, the CPU checks cx
to see if it contains zero. If not, then it moves the byte from ds:si
to es:di and decrements the cx register.
This process repeats until cx becomes zero.
The movsw (move string, words) instruction fetches the word
at address ds:si, stores it at address es:di,
and then increments or decrements si and di by
two. If there is a rep prefix, then the CPU repeats this procedure
as many times as specified in cx.
The movsd instruction operates in a similar fashion on double
words. Incrementing or decrementing si and di by
four for each data movement.
MASM automatically figures out the size of the movs instruction
by looking at the size of the operands specified. If you've defined the
two operands with the byte (or comparable) directive, then
MASM will emit a movsb instruction. If you've declared the
two labels via word (or comparable), MASM will generate a movws
instruction. If you've declared the two labels with dword,
MASM emits a movsd instruction. The assembler will also check
the segments of the two operands to ensure they match the current assumptions
(via the assume directive) about the es and ds
registers. You should always use the movsb, movsw,
and movsd forms and forget about the movs form.
Although, in theory, the movs form appears to be an elegant
way to handle the move string instruction, in practice it creates more trouble
than it's worth. Furthermore, this form of the move string instruction implies
that movs has explicit operands, when, in fact, the si
and di registers implicitly specify the operands. For
this reason, we'll always use the movsb, movsw, or movsd
instructions. When used with the rep prefix, the movsb
instruction will move the number of bytes specified in the cx
register. The following code segment copies 384 bytes from String1
to String2:
cld
lea si, String1
lea di, String2
mov cx, 384
rep movsb
.
.
.
String1 byte 384 dup (?)
String2 byte 384 dup (?)
This code, of course, assumes that String1 and String2
are in the same segment and both the ds and es registers
point at this segment. If you substitute movws for movsb,
then the code above will move 384 words (768 bytes) rather than 384 bytes:
cld
lea si, String1
lea di, String2
mov cx, 384
rep movsw
.
.
.
String1 word 384 dup (?)
String2 word 384 dup (?)
Remember, the cx register contains the element count, not the
byte count. When using the movsw instruction, the CPU moves
the number of words specified in the cx register.
If you've set the direction flag before executing a movsb/movsw/movsd
instruction, the CPU decrements the si and di
registers after moving each string element. This means that the si
and di registers must point at the end of their respective
strings before issuing a movsb, movsw, or movsd instruction.
For example,
std
lea si, String1+383
lea di, String2+383
mov cx, 384
rep movsb
.
.
.
String1 byte 384 dup (?)
String2 byte 384 dup (?)
Although there are times when processing a string from tail to head is useful
(see the cmps description in the next section), generally you'll
process strings in the forward direction since it's more straightforward
to do so. There is one class of string operations where being able to process
strings in both directions is absolutely mandatory: processing strings when
the source and destination blocks overlap. Consider what happens in the
following code:
cld
lea si, String1
lea di, String2
mov cx, 384
rep movsb
.
.
.
String1 byte ?
String2 byte 384 dup (?)
This sequence of instructions treats String1 and String2
as a pair of 384 byte strings. However, the last 383 bytes in the String1
array overlap the first 383 bytes in the String2 array. Let's
trace the operation of this code byte by byte.
When the CPU executes the movsb instruction, it copies the
byte at ds:si (String1) to the byte pointed at by es:di
(String2). Then it increments si and di,
decrements cx by one, and repeats this process. Now the si
register points at String1+1 (which is the address of
String2) and the di register points at String2+1.
The movsb instruction copies the byte pointed at by si
to the byte pointed at by di. However, this is the byte
originally copied from location String1. So the movsb
instruction copies the value originally in location String1
to both locations String2 and String2+1. Again,
the CPU increments si and di, decrements cx,
and repeats this operation. Now the movsb instruction copies
the byte from location String1+2 (String2+1) to
location String2+2. But once again, this is the value that
originally appeared in location String1. Each repetition of
the loop copies the next element in String1 to the next available

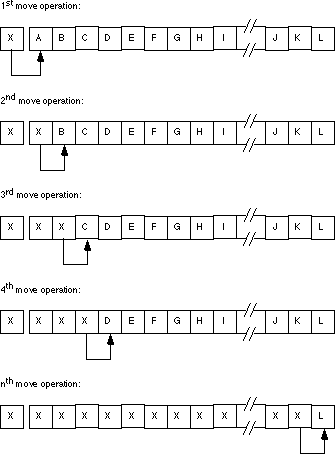

location in the String2 array. Pictorially, it looks something
like:
The end result is that X gets replicated throughout the string.
The move instruction copies the source operand into the memory location
which will become the source operand for the very next move operation, which
causes the replication.

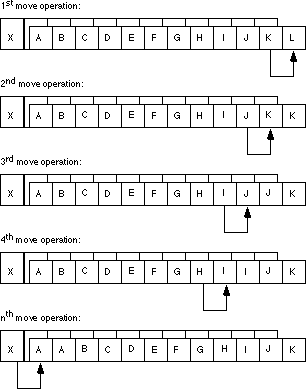

If you really want to move one array into another when they overlap, you
should move each element of the source string to the destination string
starting at the end of the two strings as shown below:
Setting the direction flag and pointing si and di at
the end of the strings will allow you to (correctly) move one string to
another when the two strings overlap and the source string begins at a lower
address than the destination string. If the two strings overlap and the
source string begins at a higher address than the destination string, then
clear the direction flag and point si and di at
the beginning of the two strings.
If the two strings do not overlap, then you can use either technique to
move the strings around in memory. Generally, operating with the direction
flag clear is the easiest, so that makes the most sense in this case.
You shouldn't use the movs instruction to fill an array with
a single byte, word, or double word value. Another string instruction, stos,
is much better suited for this purpose. However, for arrays whose elements
are larger than four bytes, you can use the movs instruction
to initialize the entire array to the content of the first element. See
the questions for additional information.
15.1.5 The CMPS Instruction
The cmps instruction compares two strings. The CPU compares
the string referenced by es:di to the string pointed at by
ds:si. Cx contains the length of the two strings
(when using the rep prefix). Like the movs instruction,
the MASM assembler allows several different forms of this instruction:
{REPE} CMPSB
{REPE} CMPSW
{REPE} CMPSD ;Available only on 80386+
{REPE} CMPS dest, source
{REPNE} CMPSB
{REPNE} CMPSW
{REPNE} CMPSD ;Available only on 80386+
{REPNE} CMPS dest, source
Like the movs instruction, the operands present in the operand
field of the cmps instruction determine the size of the operands.
You specify the actual operand addresses in the si and di
registers.
Without a repeat prefix, the cmps instruction subtracts the
value at location es:di from the value at ds:si and
updates the flags. Other than updating the flags, the CPU doesn't use the
difference produced by this subtraction. After comparing the two locations,
cmps increments or decrements the si and di
registers by one, two, or four (for cmpsb/cmpsw/cmpsd,
respectively). Cmps increments the si and di
registers if the direction flag is clear and decrements them otherwise.
Of course, you will not tap the real power of the cmps instruction
using it to compare single bytes or words in memory. This instruction shines
when you use it to compare whole strings. With cmps, you can
compare consecutive elements in a string until you find a match or until
consecutive elements do not match.
To compare two strings to see if they are equal or not equal, you must compare
corresponding elements in a string until they don't match. Consider the
following strings:
"String1"
"String1"
The only way to determine that these two strings are equal is to compare
each character in the first string to the corresponding character in the
second. After all, the second string could have been "String2"
which definitely is not equal to "String1". Of course, once you
encounter a character in the destination string which doesn't equal the
corresponding character in the source string, the comparison can stop. You
needn't compare any other characters in the two strings.
The repe prefix accomplishes this operation. It will compare
successive elements in a string as long as they are equal and cx is
greater than zero. We could compare the two strings above using the following
80x86 assembly language code:
; Assume both strings are in the same segment and ES and DS
; both point at this segment.
cld
lea si, AdrsString1
lea di, AdrsString2
mov cx, 7
repe cmpsb
After the execution of the cmpsb instruction, you can test
the flags using the standard conditional jump instructions. This lets you
check for equality, inequality, less than, greater than, etc.
Character strings are usually compared using lexicographical ordering. In
lexicographical ordering, the least significant element of a string carries
the most weight. This is in direct contrast to standard integer comparisons
where the most significant portion of the number carries the most weight.
Furthermore, the length of a string affects the comparison only if the two
strings are identical up to the length of the shorter string. For example,
"Zebra" is less than "Zebras", because it is the shorter
of the two strings, however, "Zebra" is greater than "AAAAAAAAAAH!"
even though it is shorter. Lexicographical comparisons compare corresponding
elements until encountering a character which doesn't match, or until encountering
the end of the shorter string. If a pair of corresponding characters do
not match, then this algorithm compares the two strings based on that single
character. If the two strings match up to the length of the shorter string,
we must compare their length. The two strings are equal if and only if their
lengths are equal and each corresponding pair of characters in the two strings
is identical. Lexicographical ordering is the standard alphabetical ordering
you've grown up with.
For character strings, use the cmps instruction in the following
manner:
- The direction flag must be cleared before comparing the strings.
- Use the
cmpsb instruction to compare the strings on a byte
by byte basis. Even if the strings contain an even number of characters,
you cannot use the cmpsw instruction. It does not compare strings
in lexicographical order.
- The
cx register must be loaded with the length of the smaller
string.
- Use the
repe prefix.
- The
ds:si and es:di registers must point at
the very first character in the two strings you want to compare.
-
After the execution of the cmps instruction, if the two strings
were equal, their lengths must be compared in order to finish the comparison.
The following code compares a couple of character strings:
lea si, source
lea di, dest
mov cx, lengthSource
mov ax, lengthDest
cmp cx, ax
ja NoSwap
xchg ax, cx
NoSwap: repe cmpsb
jne NotEqual
mov ax, lengthSource
cmp ax, lengthDest
NotEqual:
If you're using bytes to hold the string lengths, you should adjust this
code appropriately.
You can also use the cmps instruction to compare multi-word
integer values (that is, extended precision integer values). Because of
the amount of setup required for a string comparison, this isn't practical
for integer values less than three or four words in length, but for large
integer values, it's an excellent way to compare such values. Unlike character
strings, we cannot compare integer strings using a lexicographical ordering.
When comparing strings, we compare the characters from the least significant
byte to the most significant byte. When comparing integers, we must compare
the values from the most significant byte (or word/double word) down to
the least significant byte, word or double word. So, to compare two eight-word
(128-bit) integer values, use the following code on the 80286:
std
lea si, SourceInteger+14
lea di, DestInteger+14
mov cx, 8
repe cmpsw
This code compares the integers from their most significant word down to
the least significant word. The cmpsw instruction finishes
when the two values are unequal or upon decrementing cx to
zero (implying that the two values are equal). Once again, the flags provide
the result of the comparison.
The repne prefix will instruct the cmps instruction
to compare successive string elements as long as they do not match. The
80x86 flags are of little use after the execution of this instruction. Either
the cx register is zero (in which case the two strings are
totally different), or it contains the number of elements compared in the
two strings until a match. While this form of the cmps instruction
isn't particularly useful for comparing strings, it is useful for locating
the first pair of matching items in a couple of byte or word arrays. In
general, though, you'll rarely use the repne prefix with cmps.
One last thing to keep in mind with using the cmps instruction
- the value in the cx register determines the number of elements
to process, not the number of bytes. Therefore, when using cmpsw,
cx specifies the number of words to compare. This, of course,
is twice the number of bytes to compare.
15.1.6 The SCAS Instruction
The cmps instruction compares two strings against one another.
You cannot use it to search for a particular element within a string. For
example, you could not use the cmps instruction to quickly
scan for a zero throughout some other string. You can use the scas
(scan string) instruction for this task.
Unlike the movs and cmps instructions, the scas
instruction only requires a destination string (es:di)
rather than both a source and destination string. The source operand is
the value in the al (scasb), ax (scasw),
or eax (scasd) register.
The scas instruction, by itself, compares the value in the
accumulator (al, ax, or eax) against the value
pointed at by es:di and then increments (or decrements) di
by one, two, or four. The CPU sets the flags according to the result
of the comparison. While this might be useful on occasion, scas is
a lot more useful when using the repe and repne prefixes.
When the repe prefix (repeat while equal) is present, scas
scans the string searching for an element which does not match the
value in the accumulator. When using the repne prefix (repeat
while not equal), scas scans the string searching for the first
string element which is equal to the value in the accumulator.
You're probably wondering "why do these prefixes do exactly the opposite
of what they ought to do?" The paragraphs above haven't quite phrased
the operation of the scas instruction properly. When using
the repe prefix with scas, the 80x86 scans through
the string while the value in the accumulator is equal to the string operand.
This is equivalent to searching through the string for the first element
which does not match the value in the accumulator. The scas instruction
with repne scans through the string while the accumulator is
not equal to the string operand. Of course, this form searches for the first
value in the string which matches the value in the accumulator register.
The scas instruction takes the following forms:
{REPE} SCASB
{REPE} SCASW
{REPE} SCASD ;Available only on 80386+
{REPE} SCAS dest
{REPNE} SCASB
{REPNE} SCASW
{REPNE} SCASD ;Available only on 80386+
{REPNE} SCAS dest
Like the cmps and movs instructions, the value
in the cx register specifies the number of elements to process,
not bytes, when using a repeat prefix.
15.1.7 The STOS Instruction
The stos instruction stores the value in the accumulator
at the location specified by es:di. After storing the value,
the CPU increments or decrements di depending upon the state
of the direction flag. Although the stos instruction has many
uses, its primary use is to initialize arrays and strings to a constant
value. For example, if you have a 256-byte array you want to clear out with
zeros, use the following code:
; Presumably, the ES register already points at the segment
; containing DestString
cld
lea di, DestString
mov cx, 128 ;256 bytes is 128 words.
xor ax, ax ;AX := 0
rep stosw
This code writes 128 words rather than 256 bytes because a single stosw
operation is faster than two stosb operations. On an
80386 or later this code could have written 64 double words to accomplish
the same thing even faster.
The stos instruction takes four forms. They are
{REP} STOSB
{REP} STOSW
{REP} STOSD
{REP} STOS dest
The stosb instruction stores the value in the al register
into the specified memory location(s), the stosw instruction
stores the ax register into the specified memory location(s)
and the stosd instruction stores eax into the
specified location(s). The stos instruction is either an stosb,
stosw, or stosd instruction depending upon the size
of the specified operand.
Keep in mind that the stos instruction is useful only for initializing
a byte, word, or dword array to a constant value. If you need to initialize
an array to different values, you cannot use the stos instruction.
You can use movs in such a situation, see the exercises for
additional details.
15.1.8 The LODS Instruction
The lods instruction is unique among the string instructions.
You will never use a repeat prefix with this instruction. The lods
instruction copies the byte or word pointed at by ds:si into
the al, ax, or eax register, after which it increments
or decrements the si register by one, two, or four. Repeating
this instruction via the repeat prefix would serve no purpose whatsoever
since the accumulator register will be overwritten each time the lods
instruction repeats. At the end of the repeat operation, the accumulator
will contain the last value read from memory.
Instead, use the lods instruction to fetch bytes (lodsb),
words (lodsw), or double words (lodsd) from memory
for further processing. By using the stos instruction, you
can synthesize powerful string operations.
Like the stos instruction, the lods instruction
takes four forms:
{REP} LODSB
{REP} LODSW
{REP} LODSD ;Available only on 80386+
{REP} LODS dest
As mentioned earlier, you'll rarely, if ever, use the rep prefixes
with these instructions[3]. The 80x86 increments
or decrements si by one, two, or four depending on the direction
flag and whether you're using the lodsb, lodsw,
or lodsd instruction.
15.1.9 Building Complex String Functions from LODS and STOS
The 80x86 supports only five different string instructions: movs,
cmps, scas, lods, and stos[4].
These certainly aren't the only string operations you'll ever want to use.
However, you can use the lods and stos instructions
to easily generate any particular string operation you like. For example,
suppose you wanted a string operation that converts all the upper case characters
in a string to lower case. You could use the following code:
; Presumably, ES and DS have been set up to point at the same
; segment, the one containing the string to convert.
lea si, String2Convert
mov di, si
mov cx, LengthOfString
Convert2Lower: lodsb ;Get next char in str.
cmp al, 'A' ;Is it upper case?
jb NotUpper
cmp al, 'Z'
ja NotUpper
or al, 20h ;Convert to lower case.
NotUpper: stosb ;Store into destination.
loop Convert2Lower
Assuming you're willing to waste 256 bytes for a table, this conversion
operation can be sped up somewhat using the xlat instruction:
; Presumably, ES and DS have been set up to point at the same
; segment, the one containing the string to be converted.
cld
lea si, String2Convert
mov di, si
mov cx, LengthOfString
lea bx, ConversionTable
Convert2Lower: lodsb ;Get next char in str.
xlat ;Convert as appropriate.
stosb ;Store into destination.
loop Convert2Lower
The conversion table, of course, would contain the index into the table
at each location except at offsets 41h..5Ah. At these locations the conversion
table would contain the values 61h..7Ah (i.e., at indexes 'A'..'Z' the table
would contain the codes for 'a'..'z').
Since the lods and stos instructions use the accumulator
as an intermediary, you can use any accumulator operation to quickly manipulate
string elements.
15.1.10 Prefixes and the String Instructions
The string instructions will accept segment prefixes, lock prefixes,
and repeat prefixes. In fact, you can specify all three types of instruction
prefixes should you so desire. However, due to a bug in the earlier 80x86
chips (pre-80386), you should never use more than a single prefix (repeat,
lock, or segment override) on a string instruction unless your code will
only run on later processors; a likely event these days. If you absolutely
must use two or more prefixes and need to run on an earlier processor, make
sure you turn off the interrupts while executing the string instruction.
[3] They appear here simply because they are
allowed. They're not useful, but they are allowed.
[4]
Not counting INS and OUTS which we're ignoring here.
- 15.1.4 - The MOVS Instruction
- 15.1.5 - The CMPS Instruction
- 15.1.6 - The SCAS Instruction
- 15.1.7 - The STOS Instruction
- 15.1.8 - The LODS Instruction
- 15.1.9 - Building Complex String Functions
from LODS and STOS
- 15.1.10 - Prefixes and the String Instructions
Art of Assembly: Chapter Fifteen - 28 SEP 1996
[Chapter Fifteen][Previous] [Next]
[Art of Assembly][Randall
Hyde]
