Radiofrequency Radiation Dosimetry Handbook - Fourth Edition

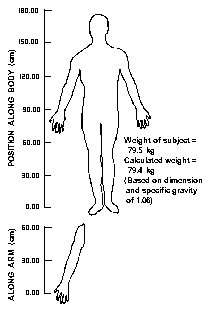

Table 9.12. Dimensions of Body Used for VLF-MF Exposure Model
(Guy and Chou, 1982)

figure 923
Position
(cm)
Circumference
(cm)
Max Dim.
(cm)
Min Dim.
(cm)
Area
(cm2)
175 2.50 0.41 0.39 0.50
170 49.44 8.05 7.68 194.28
165 56.13 9.52 8.30 248.37
160 52.69 9.52 7.07 211.41
155 40.97 7.09 5.89 131.31
150 75.89 6.84 15.65 336.19
145 108.43 14.06 19.95 881.32
140 104.33 23.00 4.73 341.56
135 96.80 20.34 7.80 498.36
130 96.79 16.32 14.44 739.97
125 96.08 16.03 14.51 730.99
120 93.48 15.85 13.83 688.97
115 90.19 15.67 12.90 635.18
110 91.61 15.88 13.16 656.22
105 92.86 16.14 13.28 673.38
100 95.20 16.92 13.15 698.82
95 96.71 17.56 12.86 709.64
90 85.86 15.44 11.62 563.77
85 57.20 9.48 8.71 259.42
80 56.54 9.32 8.66 253.75
75 54.15 9.09 8.12 231.88
70 51.44 8.63 7.72 209.32
65 46.02 8.09 6.47 164.35
60 41.54 7.28 5.87 134.16
55 38.22 6.43 5.72 115.42
50 35.65 5.93 5.40 100.68
45 34.75 5.47 5.59 96.09
40 37.78 5.93 6.09 113.53
35 39.20 6.20 6.27 122.30
30 34.69 5.04 5.96 94.42
25 29.53 5.01 4.37 68.78
20 26.18 4.13 4.20 54.53
15 22.93 4.14 3.08 40.03
10 24.04 4.55 2.92 41.78
5 40.97 8.04 4.51 113.98
0 64.40 13.95 3.94 172.57
55 33.75 5.47 5.27 90.56
50 30.90 4.31 5.46 73.89
45 29.53 4.45 4.94 69.01
40 27.75 4.51 4.33 61.22
35 26.70 4.87 3.52 53.90
30 26.76 4.47 4.03 56.66
25 27.15 4.76 3.87 57.28
20 25.22 4.68 3.20 47.16
15 22.35 3.48 3.63 39.73
10 19.39 3.18 2.99 29.86
5 19.64 3.44 2.77 29.99
