Voltage Labs Hand Held HERF Competition Results!
The winner is ShawnLG! For having been the first person to construct and fit a power supply inside of a microwave oven magnetron case, that is capable of powering itself. Congratulations.
![](hhh01.jpg) Video demonstration of the HHH in operation.
![](completed.jpg)
This is a side view of the HHH with all the components tucked inside.
![](layer01.jpg)

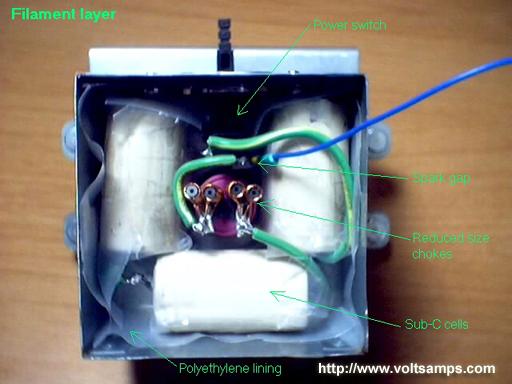

This is the first layer of components within the HHH. Everything seems to be very well insulated.
![](layer02.jpg)
This is the second layer of components.
![](schematic.jpg)

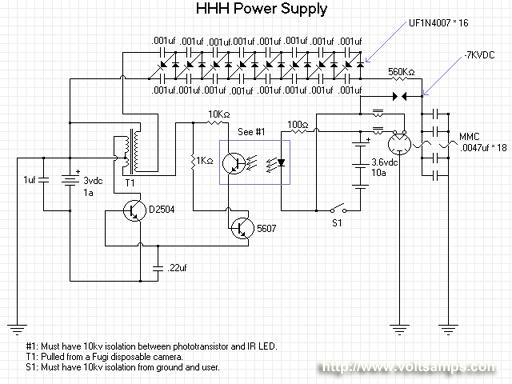

Here is ShawnLG's schematic representing how his power supply runs.
Great Job ShawnLG!
|
|
