Collection of modules from REMEC Broadband Wireless.

Teardown of REMEC ED-0421-0 Microwave Transmitter Module  (PC Board: 600-14637-0001)

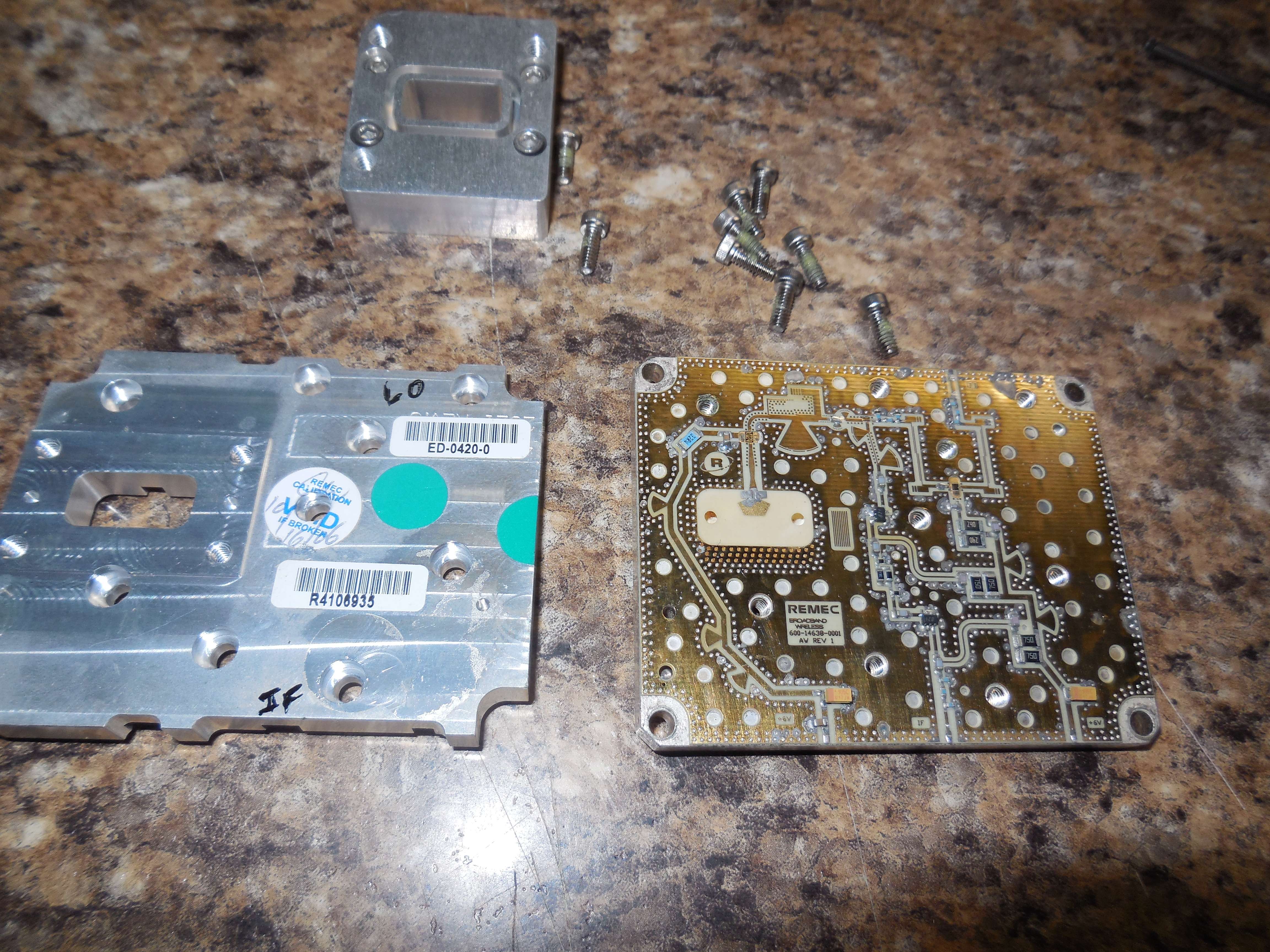

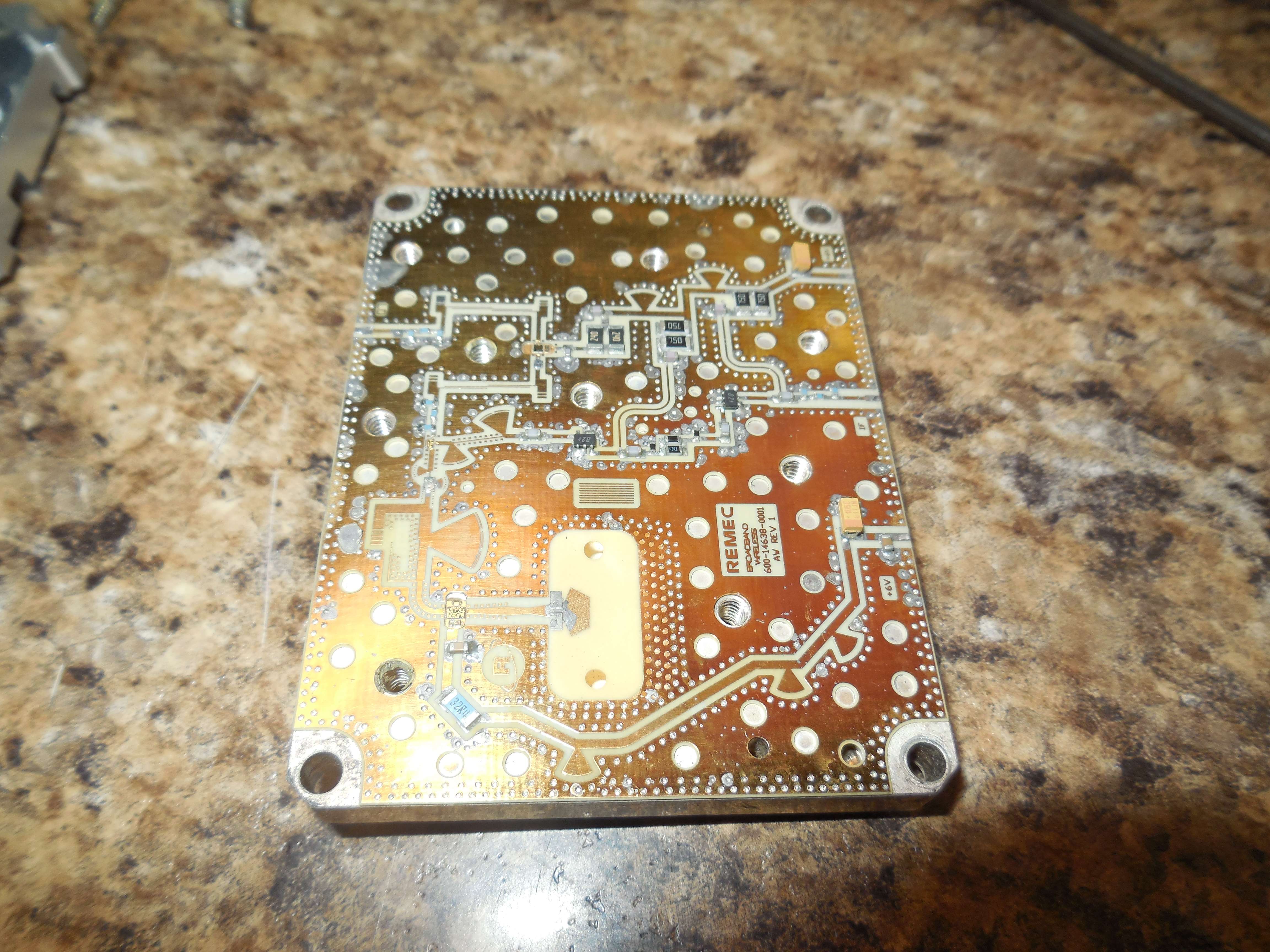

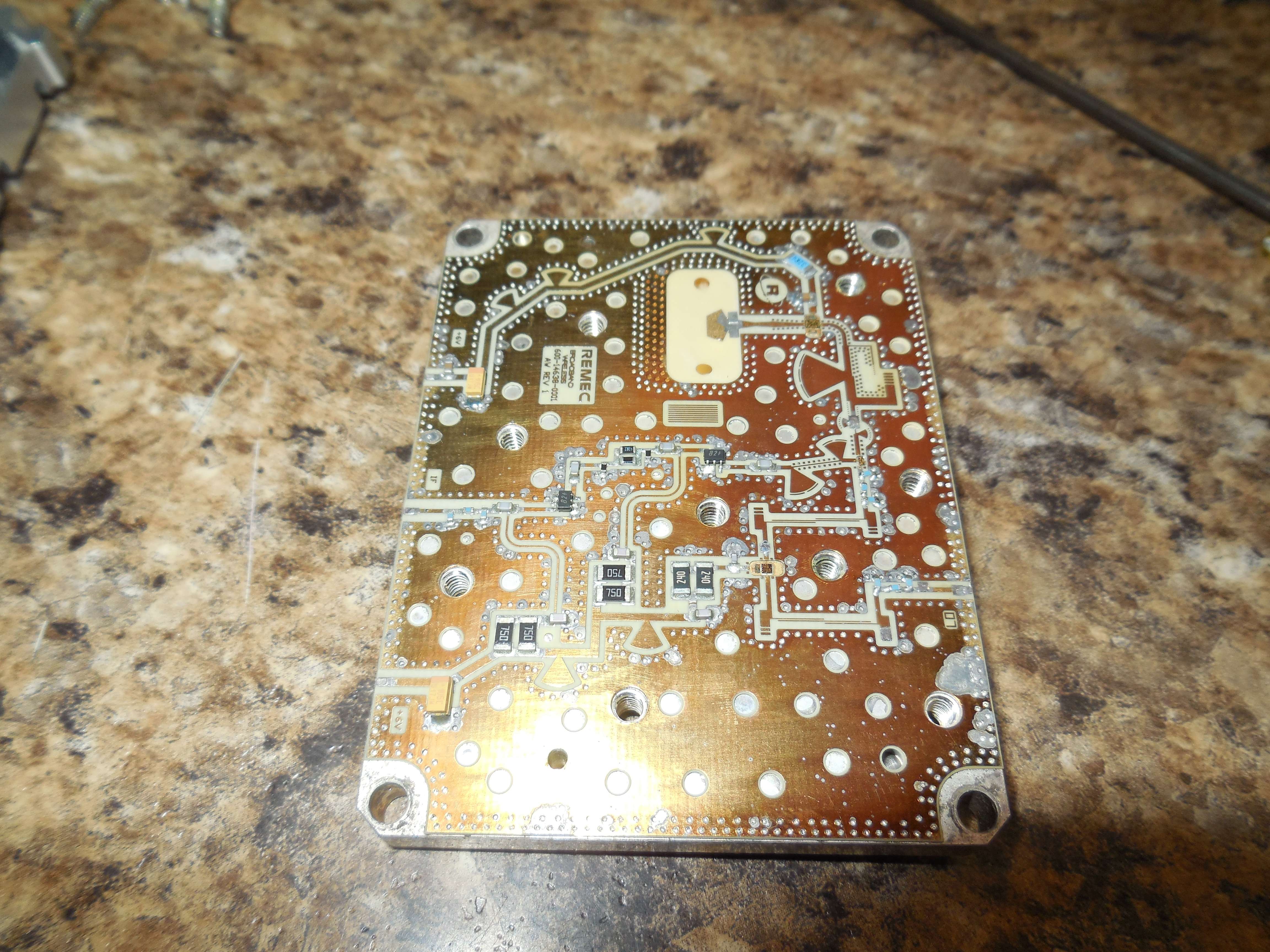

Receive Module





+6 VDC, LO Input, IF Output, WR-62 Waveguide (RF Input)

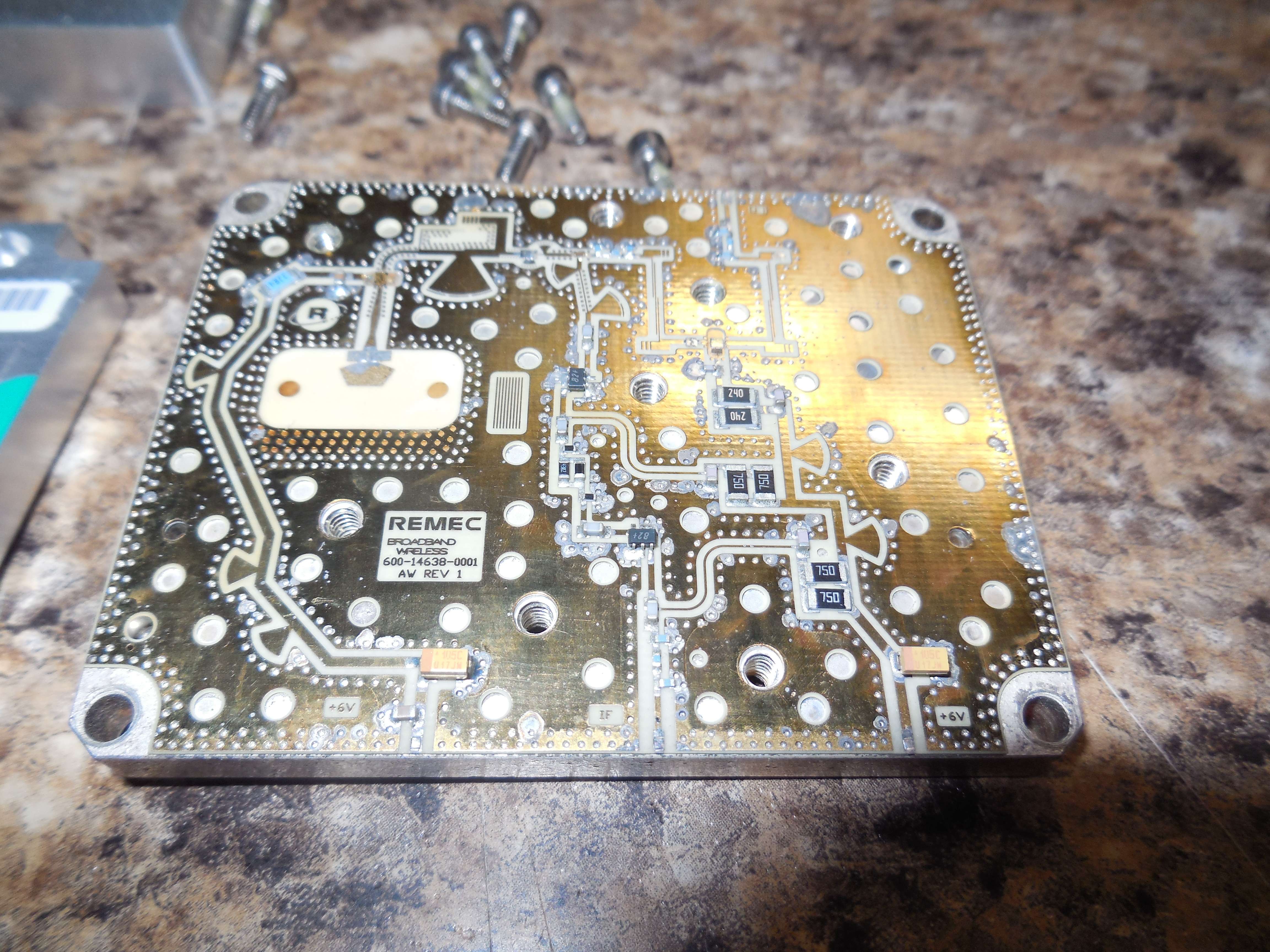

REMEC Sticker: ED-0420-0 Sticker: 020-16899-0021 Rev D.1 Stamp: 400-18150-2011 Rev C PC Board: 600-14638-0001 Rev 1

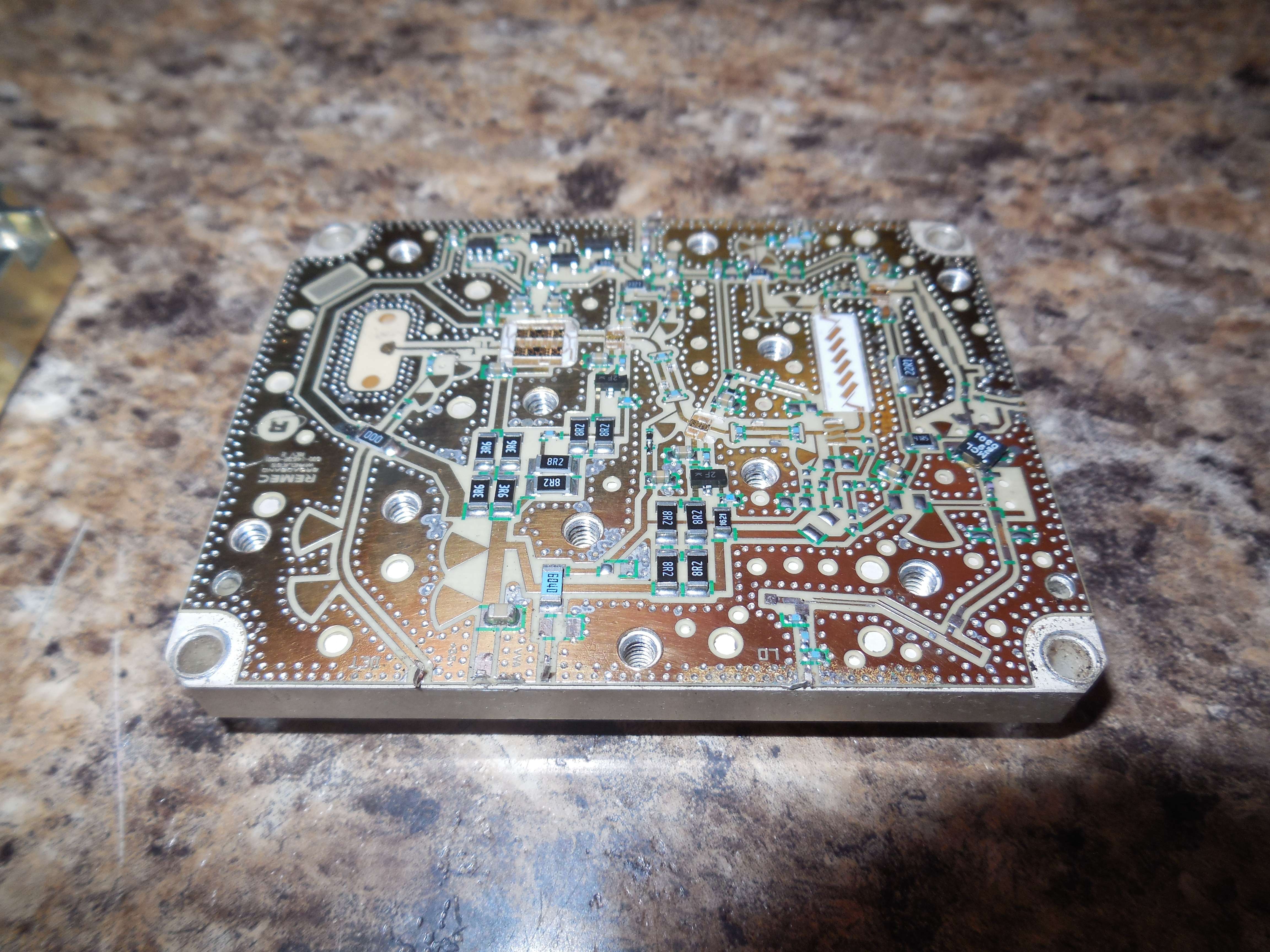

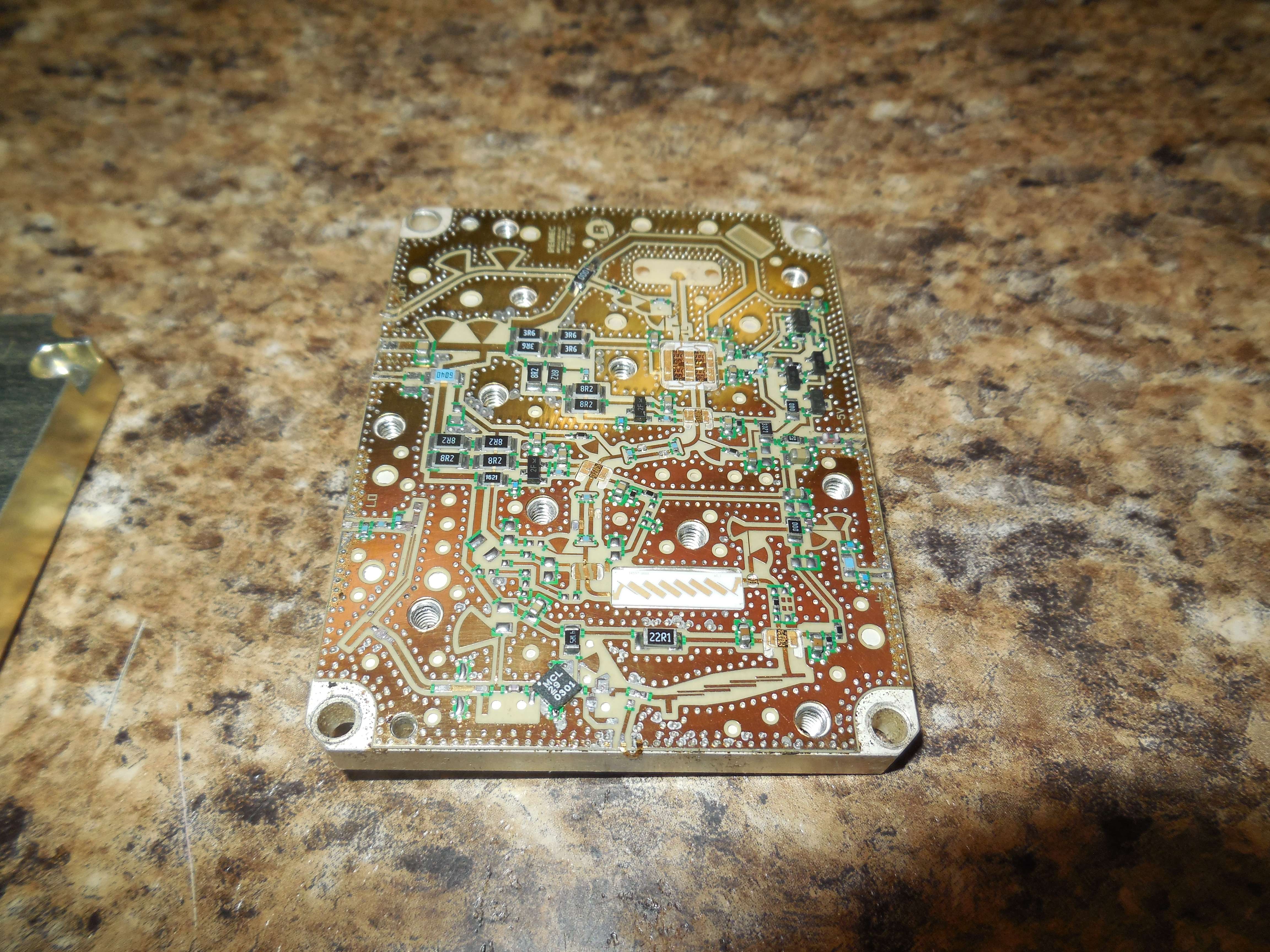

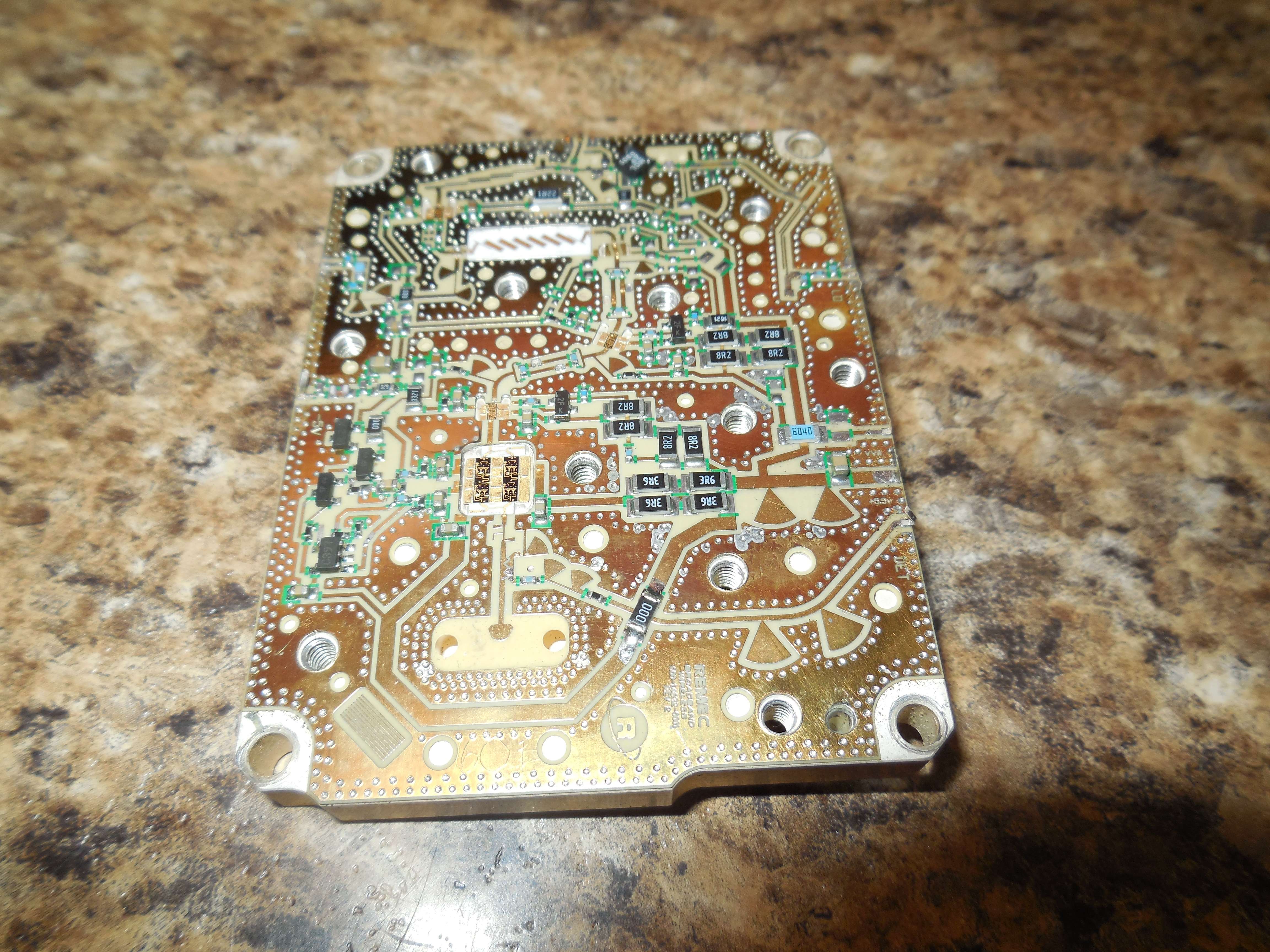

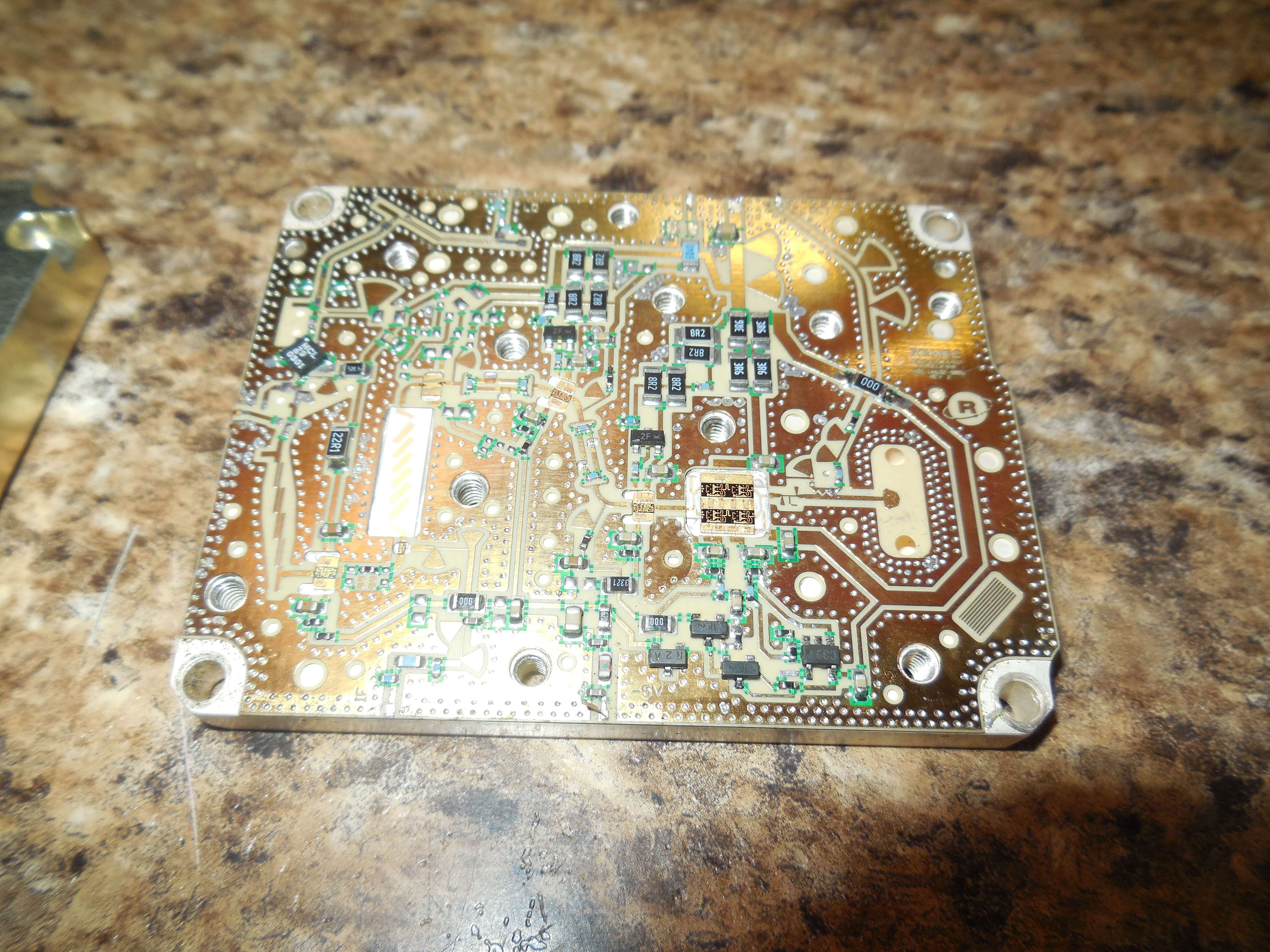

Transmit Module





+5.5 VDC, -5 VDC, VVA Input, Detector Output, LO Input, IF Input, WR-42 Waveguide (RF Output)

MCL LEE-29 LO amplifier.  I believe after mixing the LO with the IF, there are two sets of frequency doublers before the final amplifier and RF output?

Example:  IF Input: 1 GHz, LO Input: 5 GHz, RF Output: 24 GHz

This transmit unit came from a Ceragon 26 GHz unit.

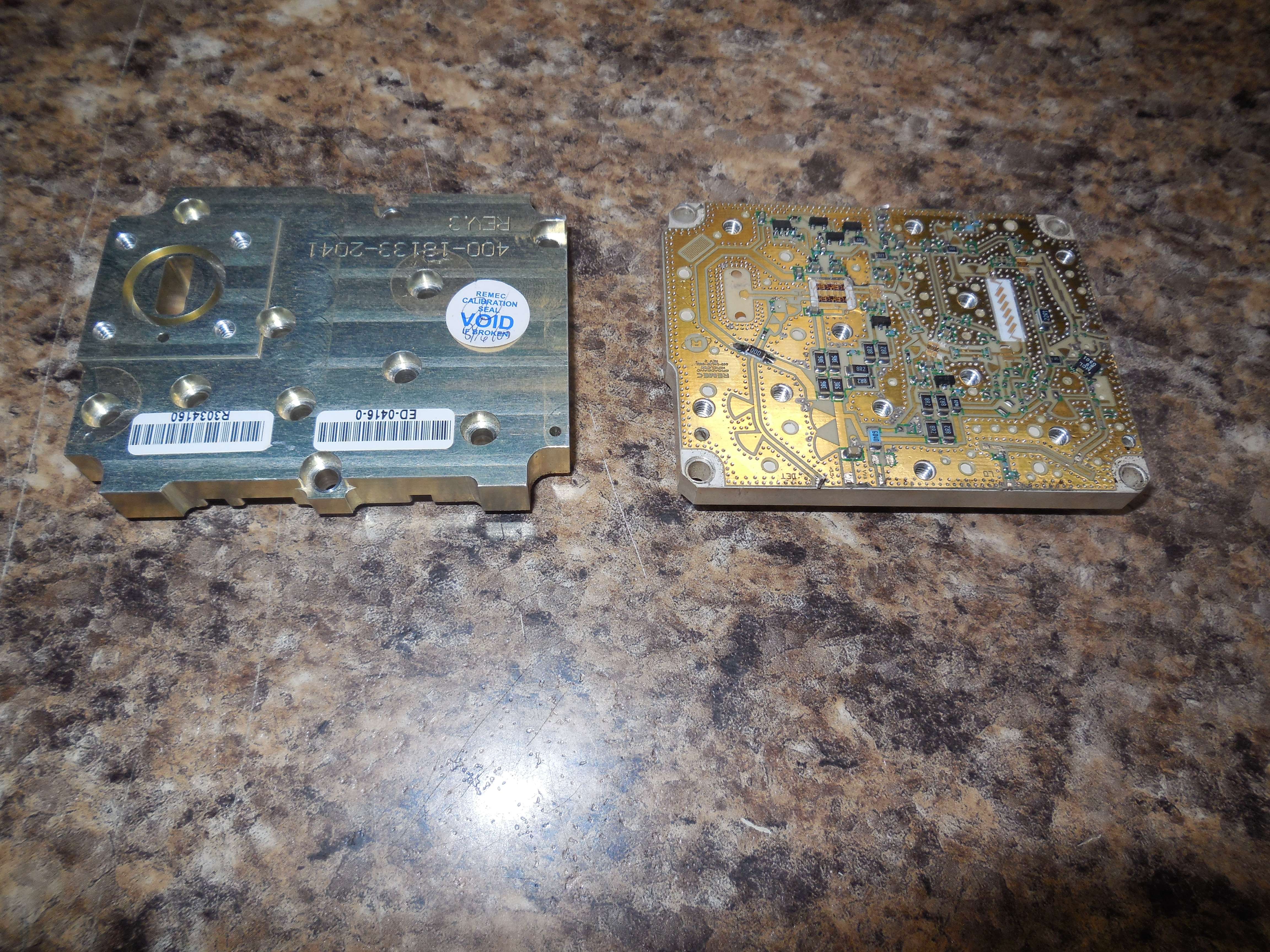

REMEC Sticker: ED-0416-0 Stamp: 400-18133-2011 Rev 3 / 400-18133-2041 Rev 3 PC Board: 600-14632-0001 Rev 2
