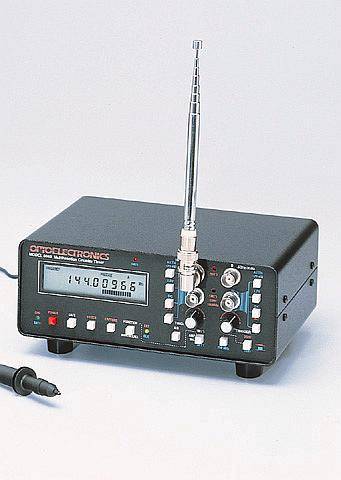

The 8040 is a full-featured multi-function counter in a compact, bench/portable design. Capable of frequency measurements from near DC to over 3GHz, the 8040 is suited for virtually every application. Outfitted with the optional antenna, its compact size and ultra-high sensitivity make it perfect for "off-the-air" measurements and Frequency Finding using the Digital Filtering and Digital Auto Capture® functions.

The 8040 brings all of the same advanced features found in the 3000A HandiCounter® to a bench/portable configuration. It shares the same specifications for sensitivity, gate times, display resolution, and operating modes as the 3000A. For bench use however, the 8040 adds a complete set of input signal conditioning and trigger level controls for both high impedance input amplifiers. This gives the operator more flexibility in making frequency, period, ratio and time interval measurements on a wider variety of signals. In addition, the 8040 has an RS-232C serial data interface. It can be directly connected to the serial port of a PC and used with the OptoLog data logging software.

The 8040 comes standard with a low power .05 ppm 0-50^oC ovenized oscillator (OCXO). The OCXO is manufactured by KVG for the military and is extremely rugged as well as low in power consumption. The 8040 also comes standard with an internal NiCad battery, for portable use. The LCD display has an electroluminicent (EL) backlight standard.

• Full Function: Frequency, Period, Ratio, Time Interval & Average, Digital Filtering and Digital Auto Capture®
• 16 Segment Signal Strength Bargraph
• Optimized sensitivity for maximum RF pick-up distance
• Dual 50 Ohm and 1 Meg Ohm input amplifiers with AC/DC coupling, +/- Polarity, Trigger Level Adj, Low Pass Filter, and Attenuator
• .05 ppm 0-50^oC Ovenized Time Base
• Internal Clock Output/External Clock Input
• RS-232C Serial Computer Interface built in

Specifications

		Input A				Input B
Amplifier:		1 Meg Ohm		50 Ohm		1 Meg Ohm		50 Ohm
Impedance:		30 pF		vswr <2:1		30 pF		vswr <2:1
Range:		10Hz-50MHz		1MHz-250MHz		10Hz-10MHz		500MHz-3GHz
Sensitivity (Typical):		<10mV 10Hz-10MHz		200MHz Range:		10mV 10Hz-10MHz		3GHz Range:
		<20mV 10MHz-50MHz		<5mV @ 10Mhz				<600uV @ 400MHz
				<300uV @ 150MHz				<1mV @ 1GHz
				800MHz Range:				<5mV @ 2GHz
				<450uV @ 200MHz				<60mV @ 3GHz
				<600uV @ 400MHz
				<3mV @ 800MHz
Maximum Input Signal:		50V AC+DC		+15dBm (50mW)		50V AC+DC		+15dBm (50mW)
Coupling:		Selectable AC,DC		AC		Selectable AC,DC		AC

Time Interval (TI) Mode      "A" Start "B" Stop Minimum pulse width is 200nS.
Period/TI Max Resolution     Single Shot - 100 nS. Averaged - .1 nS.
                             Max Display: 999.999  999.9 uS
Period/TI Average            Averages 10, 100, or 1000 measurements for
                             increased resolution.
Time Base                    10 MHz
Display                      10 Digit (120 segment) Liquid Crystal Display.
Low Battery Indicator        "LOW BATT" displayed when battery pack needs charging.
Annunciators                 Frequency, Period, Interval, Ratio, Average, MHz, uS, nS,
                             Low Batt, Prescale, A, B, Intervals/Periods Averaged
Size                         5.5" high x 7.4" wide x 6.8" deep. Weight 36 oz.
Cabinet                      Extruded Aluminum, black paint finish
Power                        9VDC, 250mA using model AC90 wall plug adapter.
                             3+ hours operation from internal NiCad Pack.
                             2 hour recharge from AC adapter charger.
