TNC RF Output Jack Installation

Select a picture for larger image.

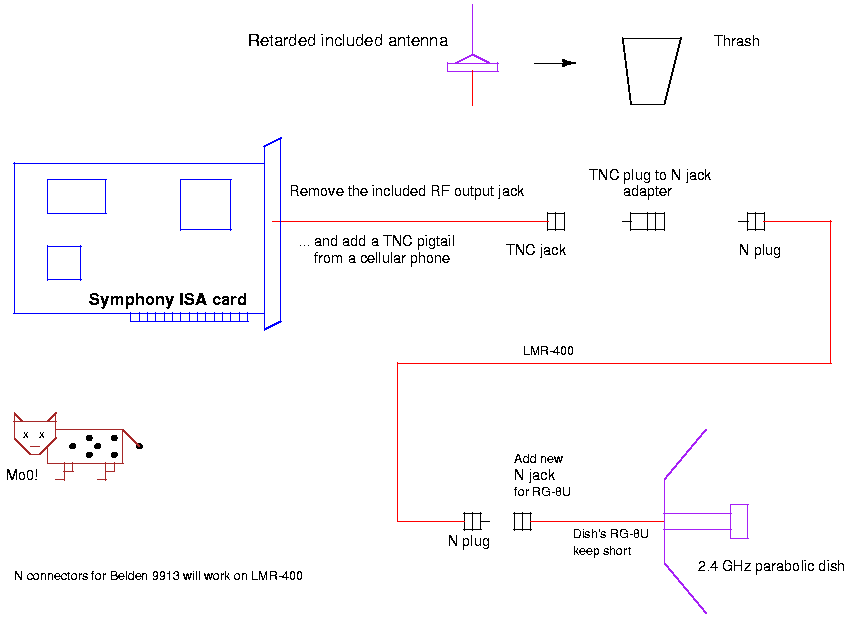

Overview diagram

[tnc_install-6]  Inside a cellular phone with a TNC pigtail RF output connector.

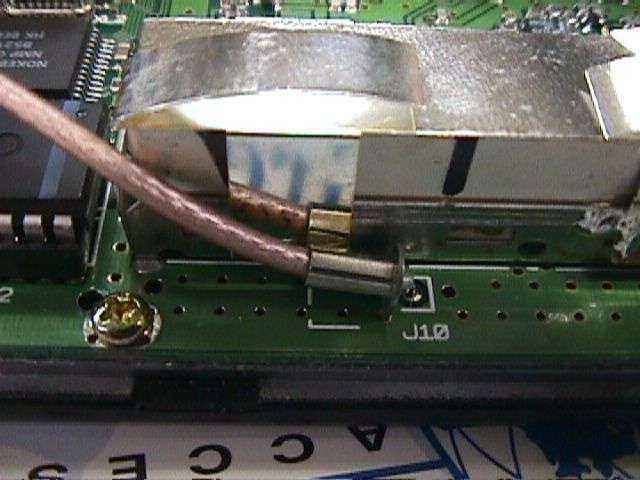

[tnc_install-7]  Closeup inside the cellular phone.

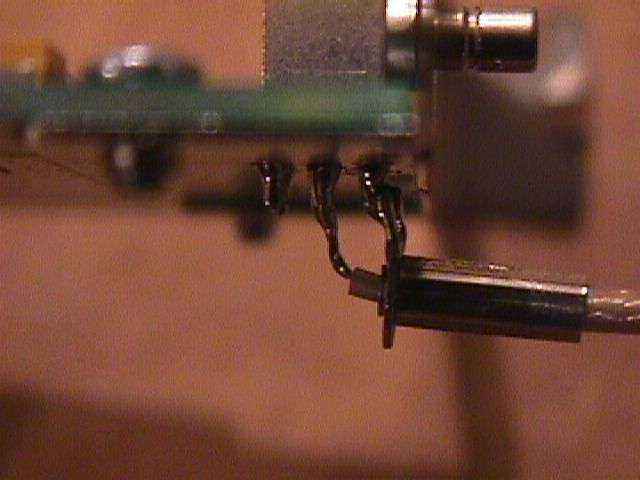

[tnc_install-1]  Initial test setup.  The TNC pigtail is only tack soldered.

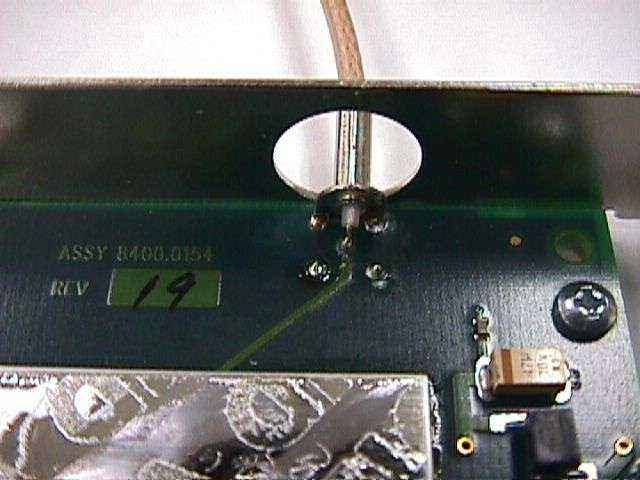

[tnc_install-3]  Symphony's original RF output jack is removed and the TNC pigtail is installed.

[tnc_install-8]  Stress relief holder for the TNC jack made out of scrap aluminum.
