DMC Parts List

(Source from W6BY)

Digital Microwave Corp. (DMC/Stratex) manufactures short-haul links for the microwave frequencies.  Recently, a few parts have become available at some surplus stores and ham swaps.  The following is a list of information learned from sorting through piles of "junk."  Please email me if you have information to add to this list.

DMC made a base unit for some of its outdoor 23 GHz boxes.  Generally they use the same color code and plug scheme, so that if you find one of these base units (motherboards) and the 48 volt input DC-DC converter that plugs into it, you have a decent test fixture.


Color Coding

   Red: +8V
Purple: -5V
 Black: Ground
 White: Alarm (PLL Lock)
Yellow: Monitor
  Gray: ?

DMC Marking Description

24 GHz Equipment

1100125  - Upconverter, 310 MHz IF input, external filter, output stage capable of +20 dBm, +8V

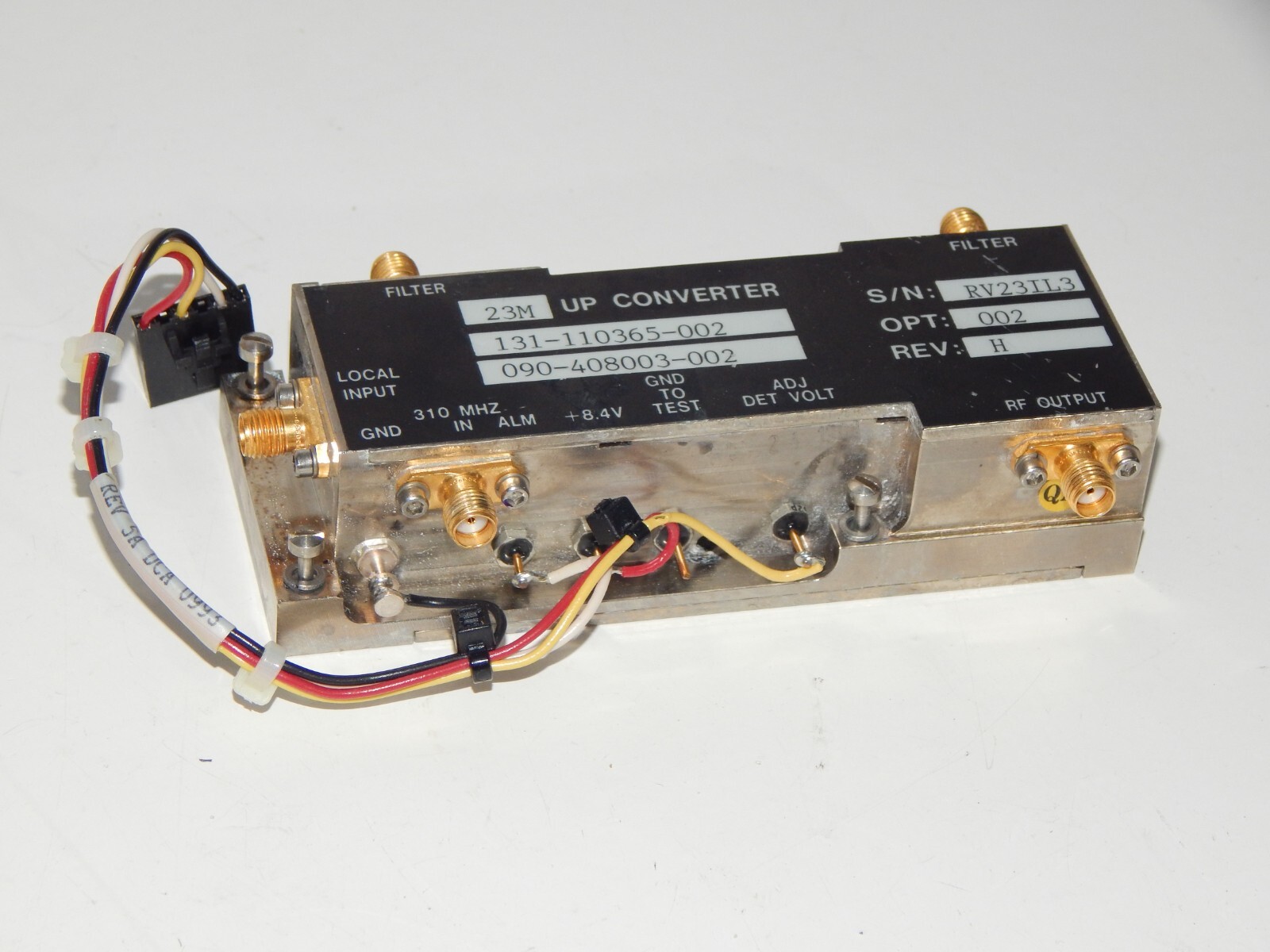

110365-002  - Upconverter, 310 MHz IF input, external filter, output stage capable of +20 dBm, +8V

110363-002  - Power amp, spec'ed at +27 dBm output, single input, +8V

110123-002  - Power amp, spec'ed at +27 dBm output, dual-input, switchable by -5V on control line, +8V, -5V

110126  - Down-converter, dual-conversion.  First IF in 1800 MHz range, second IF at 70 MHz, +8V

110124  LNA, noise figure 4.4 dB, gain 17 dB, +8V

110364-001  LNA, noise figure 3.7 dB, gain 17 dB, +8V

110368-016  - Local oscillator, crystal-controlled in the 106 MHz range, +8, -5V

110366  - Local oscillator, synthesized, DIP switch programmable, +8V

There is a whole family of these oscillators covering different frequency ranges.  The base part number is 408007, with a suffix (dash number) indicating frequency range.  Here are some of the ones I have programmed for the ham band:

110366-323

110366-505  21.887 GHz (2305 MHz IF)

110366-506  22.044 GHz (2148 MHz IF)

110366-603  22.929 GHz (1263 MHz IF)

110366-604  23.761 GHz (431 MHz IF)

110366-605  23.758 GHz (434 MHz IF)

10 GHz Equipment

090-41002-001  Upconverter/power amp, +20 dBm output?, +8V

110385  Upconverter/power amp, +30 dBm output?, +8V

110384-001  Down-converter, dual-conversion, first IF 310 MHz, second IF 70 MHz

2 GHz Equipment

416003-003  - Upconverter, +33 dBm output, +8V

110751-004  - Upconverter, +33 dBm output, +8V

090-417003-105/131-111290-106  - Upconverter, +36 dBm out, +12V, -5V

Miscellaneous Equipment - Local Oscillators

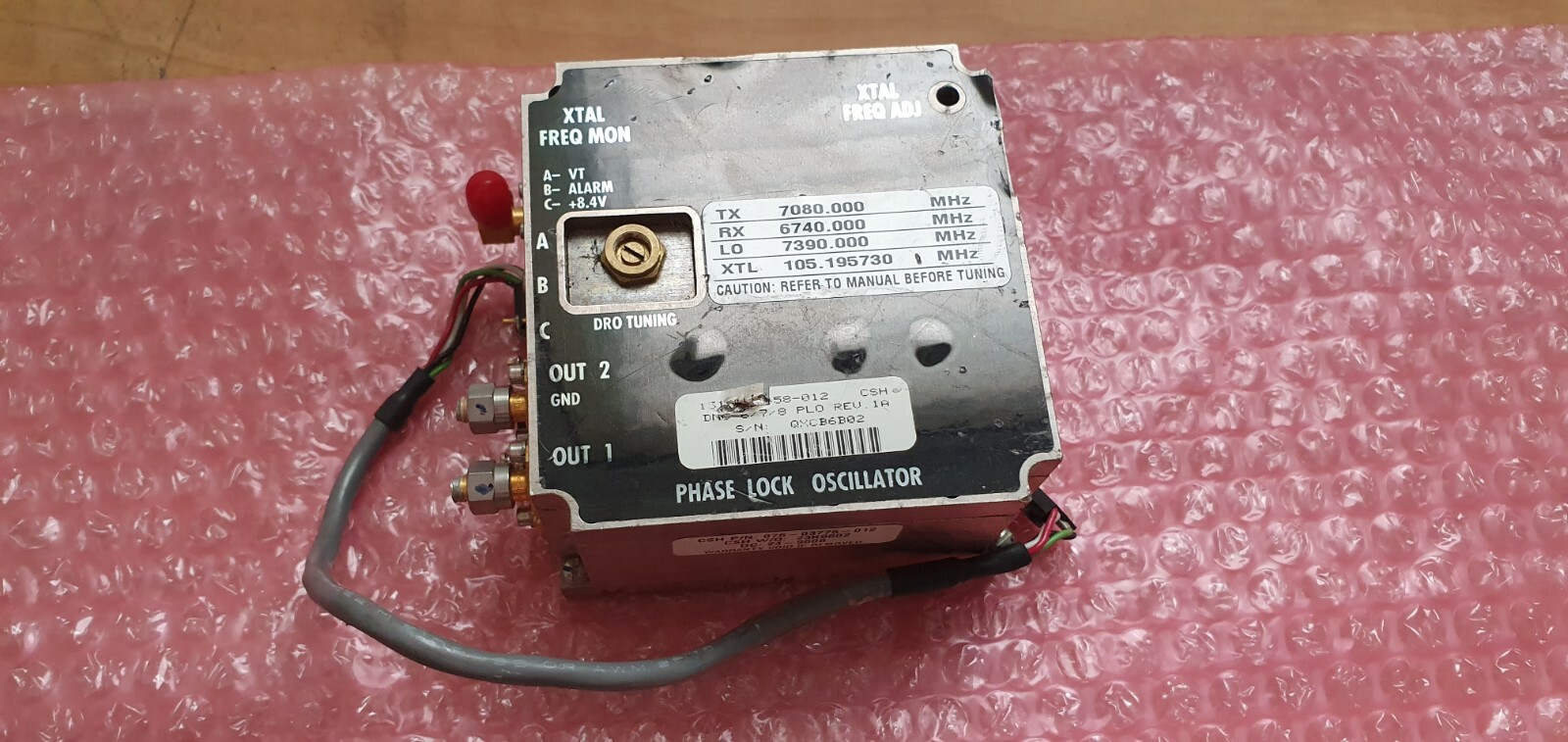

131-111458-012  7 GHz, crystal-controlled

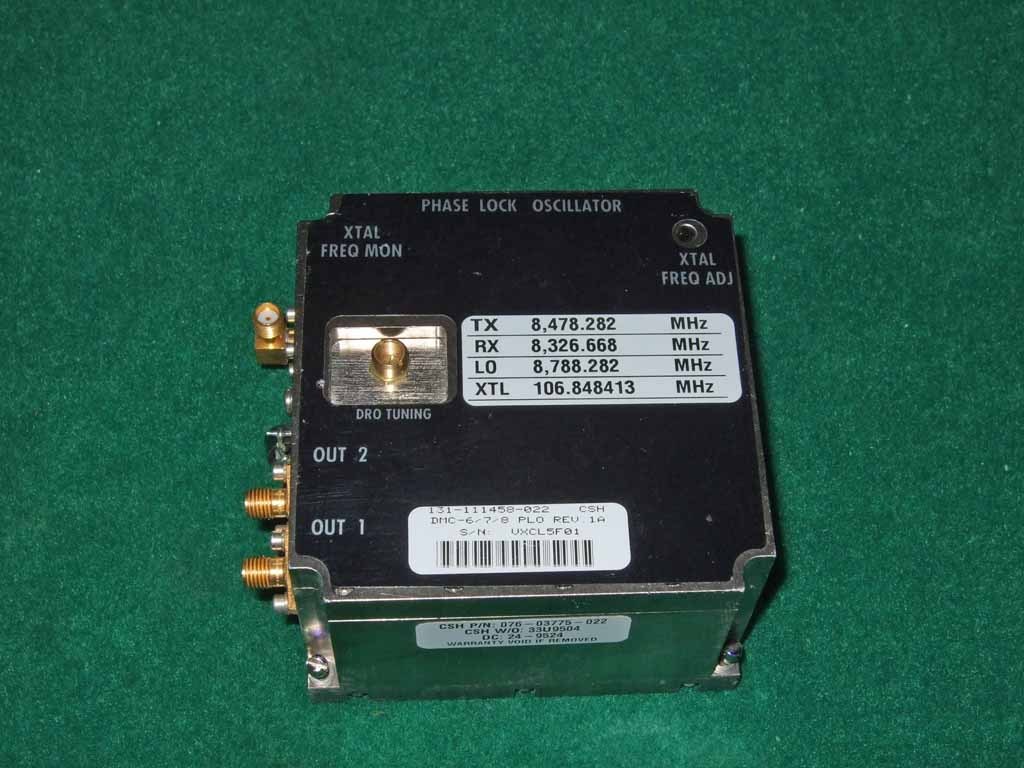

131-111458-022  8.4 GHz, crystal-controlled

131-111456-007  - 10.5 GHz, crystal-controlled

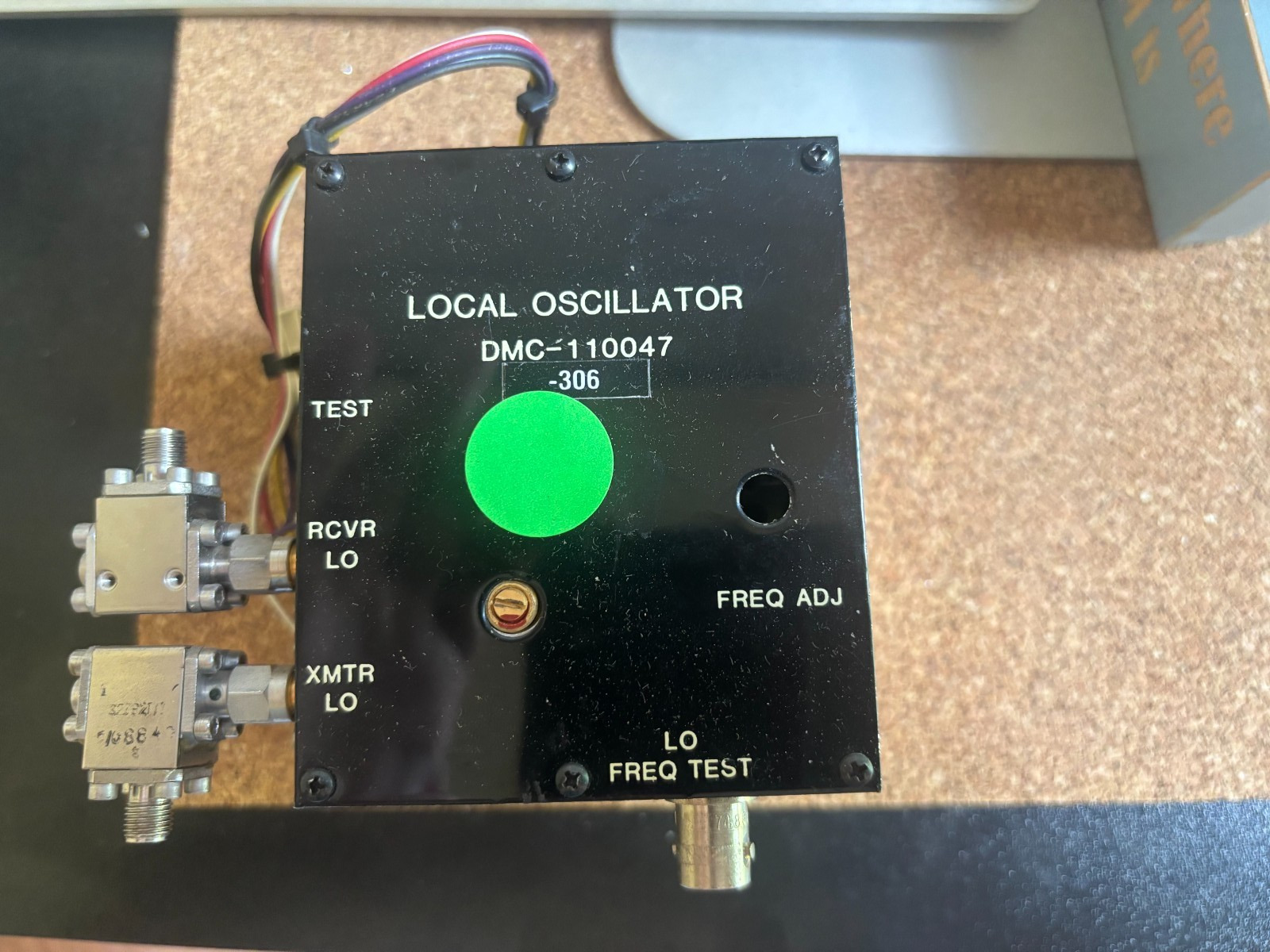

110047-306  - 18 GHz

110368-010  - 22.1 GHz, crystal-controlled

110127  - 23.5 GHz, crystal-controlled

110366/408007-603  - 23.1 - 24.3 GHz, PLL synth.

110366-322  - 23 GHz, PLL synth

110137  - 13 - 14 GHz, crystal-controlled

412007-001  - 12.5 GHz PLL synth.

131-110389-502  - 12.2 GHz, crystal-controlled

110127-123  - 23.6 GHz, crystal-controlled

131-110137-001  - 12.5 GHz crystal-controlled

Miscellaneous Equipment - Low-Noise Amplifiers

131-110184-001  - 18 GHz

090-415002-102  - ?

110044-002  - 18 GHz, dual-input

Miscellaneous Equipment - RF Power Amplifiers

110687  - 18 GHz

406002/131-110184-001  - 18 GHz

110043  - 18 GHz, +23 dBm

DMC-110183-001  - 18.58 - 19.16 GHz, +27 dBm

131-110123-003  - 23 GHz

110697  - ?

110363-002  - 18 GHz

093-434890-001  - 15 GHz, +30 dBm

131-110351-001  - 15 GHz, +30 dBm

Miscellaneous Equipment - Down-Converter

076-105350-02  - 6 GHz down converter

Miscellaneous Equipment - Tranceivers

110001  - 21/22 GHz tranceiver

110320  - 18 GHz tranceiver


DMC-110041-210, Local Oscillator
DMC-110043-001, Power Amplifier
DMC-110043-002, Power Amplifier
DMC-110043-004, Power Amplifier
DMC-110044-001, Low Noise Amplifier
DMC-110044-002, Low Noise Amplifier
DMC-110045-001, Up-Converter
DMC-110045-202, Up-Converter
DMC-110045-403, Up-Converter
DMC-110046-001, Down-Converter
DMC-110046-002, Down-Converter
DMC-110047-003, Up-Converter
DMC-110047-105, Local Oscillator
DMC-110047-106, Local Oscillator
DMC-110047-202, Local Oscillator 17,690 MHz
DMC-110047-403, Local Oscillator 19,910 MHz
DMC-110047-301, Local Oscillator 19,590 MHz
DMC-110048-001, Processor
DMC-110123-003, Power Amplifier
DMC-110052-001, Modem
DMC-110123-004, Power Amplifier
DMC-110124-001, Low Noise Amplifier
DMC-110124-002, Low Noise Amplifier
DMC-110125-001, Up-Converter
DMC-110125-002, Up-Converter
DMC-110126-001, Down-Converter
DMC-110126-002, Down-Converter

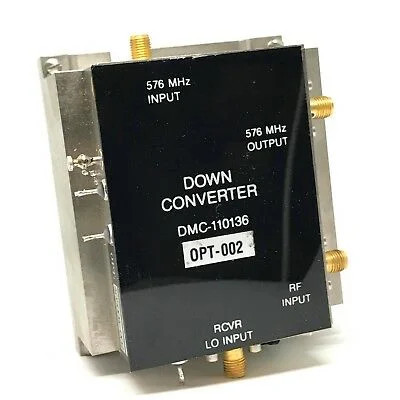

DMC-110136, Down-Converter, 576 MHz Input
DMC-110127-113, Local Oscillator
DMC-110127-121, Local Oscillator 23,535 MHz
DMC-110127-123, Local Oscillator 23,635 MHz
DMC-110127-124, Local Oscillator
DMC-110127-501, Local Oscillator
DMC-110127-503, Local Oscillator 21,815 MHz
DMC-110127-504, Local Oscillator 21,865 MHz

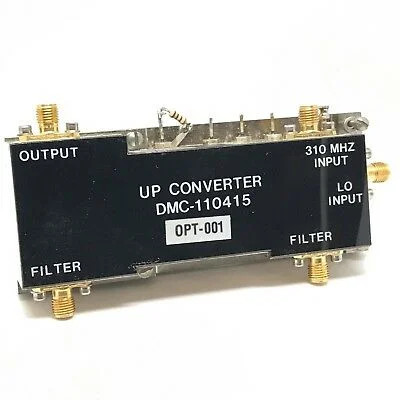

DMC-110415, Up-Converter, 310 MHz Input
DMC-110185-001, Up-Converter
DMC-110186-001, Down-Converter
DMC-110187-001, Local Oscillator
DMC-110187-138, Local Oscillator
DMC-110187-240, Local Oscillator
DMC-140015-102, Modem
DMC-141610-001, CPU/ Power Supply
DMC-141611-006, Spectrum II Personality Card
DMC-141724-001, Power Supply
DMC-110001-224, TX:22100.0MHz - RX:23300.0MHz

???
---
076-107673 18 GHz Balanced LNA, dual outputs



T1/E1: DART / LC (1.5 Mbps)
DS-3/E3: XP4 / SPECTRUM II / DXR (45 Mbps)
OC-3-STM-1: Altium (155 Mbps)
2xOC-3/2xSTM-1/4xOC-3/4xSTM-1/OC-12/STM-4: Millennium (622 Mbps)

https://www.chicagotech.com/products/digital-microwave/pg1

DMC Stratex XP4 Information

DMC Stratex XP4 - Reference Manual
XP4 Tune-Up Procedures
XP4 Installation and Operating Instructions
XP4 Operating Parameters
XP4 Frequency, Spurious, and Power Control
XP4 Modulation System Description
XP4 Data Package #2

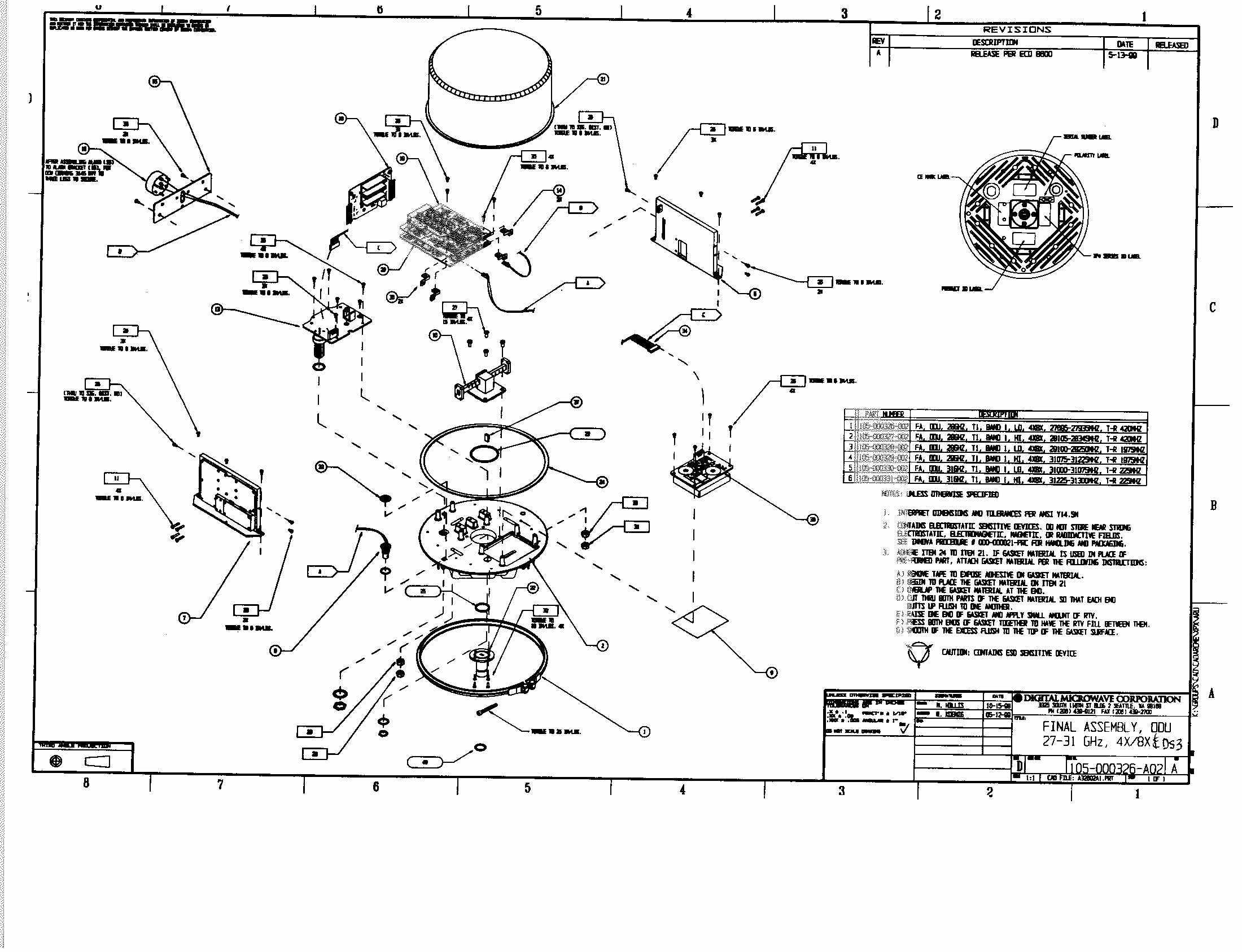

XP4 Internal Layout
XP4 Nameplates

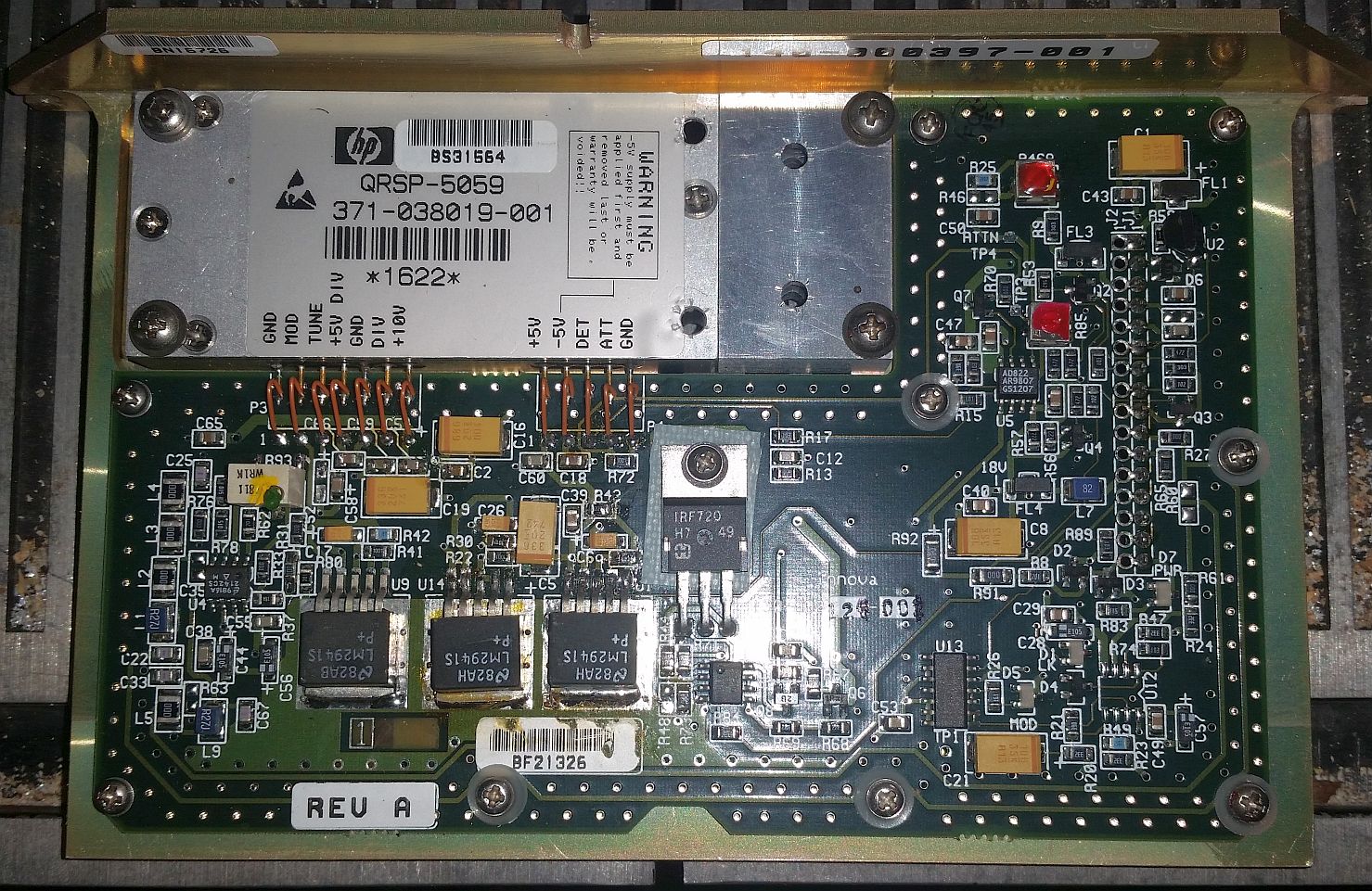

XP4 TX Module Internal Picture HP Hybrid


Each XP4 ODU is designed to operate over the entire frequency band of interest:
 * 37.0 - 39.5 GHz for a 38 GHz system
 * 27.6 to 31.3 GHz for a 28/29/31 GHz system (DS1/DS3 only)
 * 24.25 - 26.5 GHz for a 26 GHz system
 * 24.25 – 25.25 GHz for a 24 GHz system (DS1/DS3 only)
 * 21.2 - 23.6 GHz for a 23 GHz system
 * 17.7 - 19.7 GHz for a 18 GHz system
 *  14.4 - 15.35 GHz for a 15 GHz system
 * 12.75 - 13.25 GHz for a 13 GHz system
