APPENDIX A:

Experimental Data

Example of measurements from 10 Hz to 20 GHz

INDEX

A1: Grey Matter

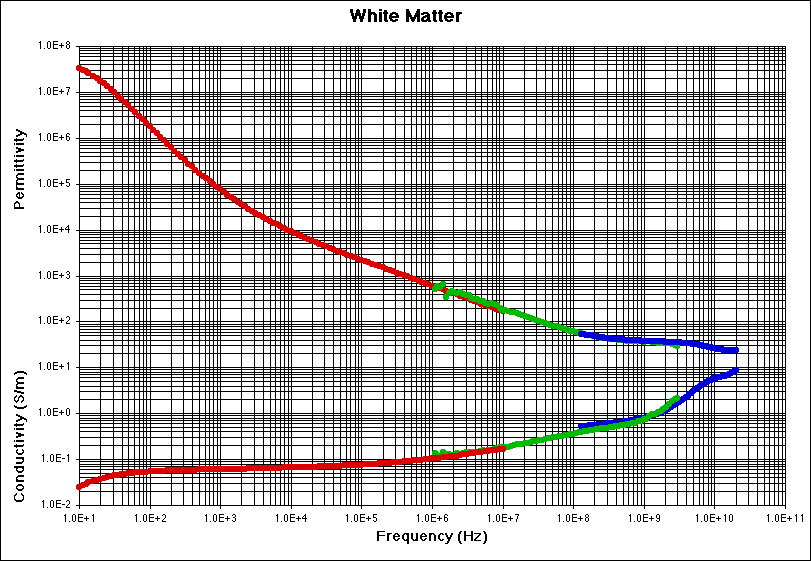

A2: White matter
A3: Heart
A4: Kidney

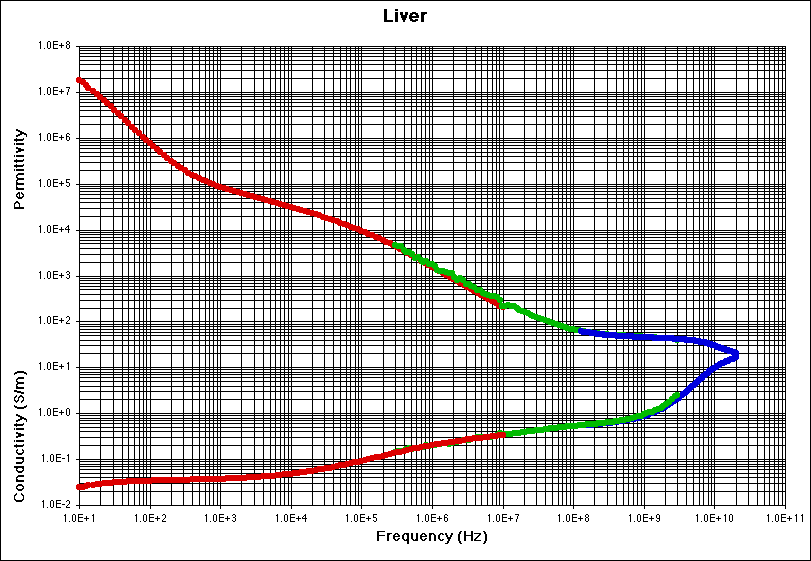

A5: Liver

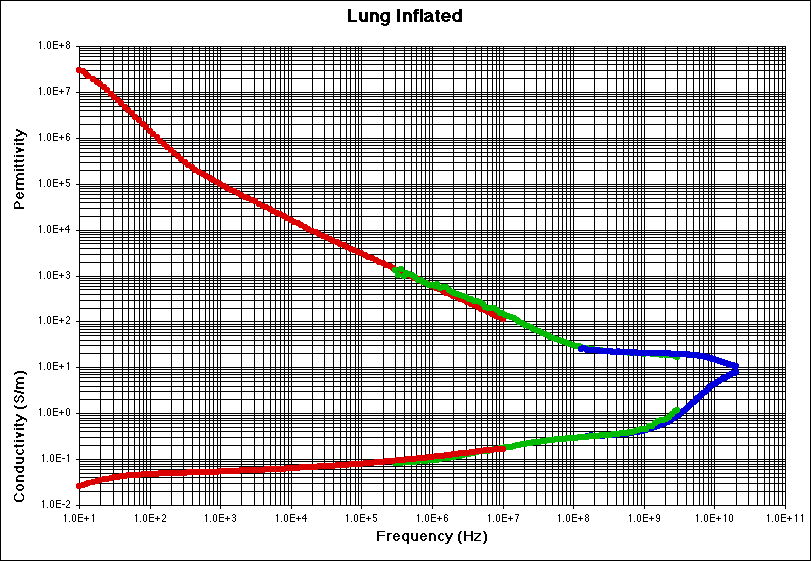

A6: Lung (Inflated)

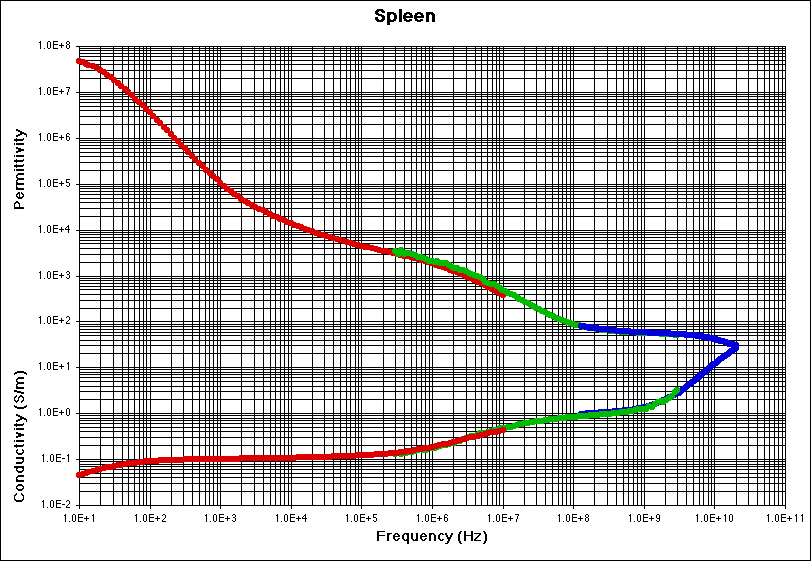

A7: Spleen

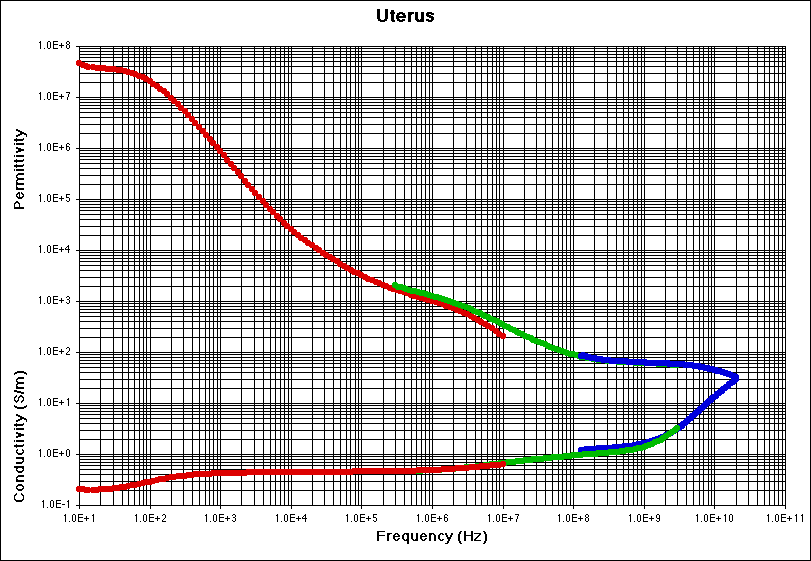

A8: Uterus

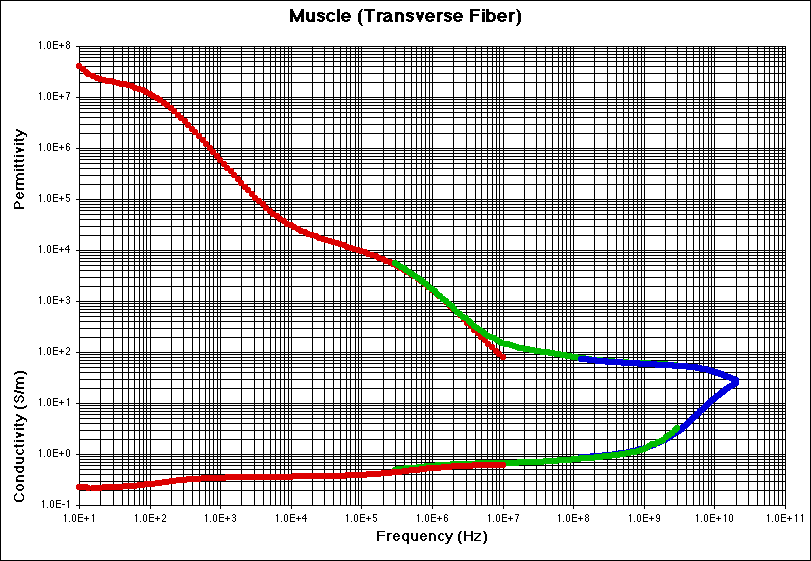

A9: Muscle Transverse
A10: Muscle Parallel
A11: Skin Wet

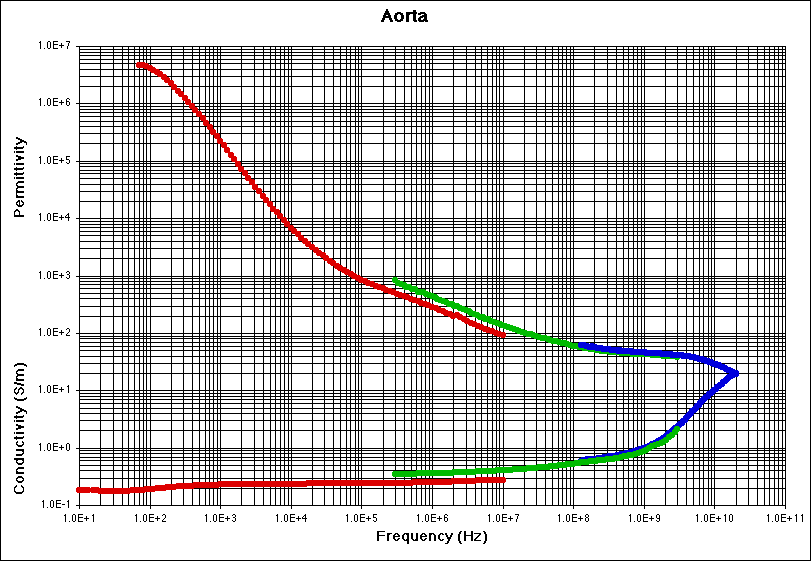

A12: Aorta

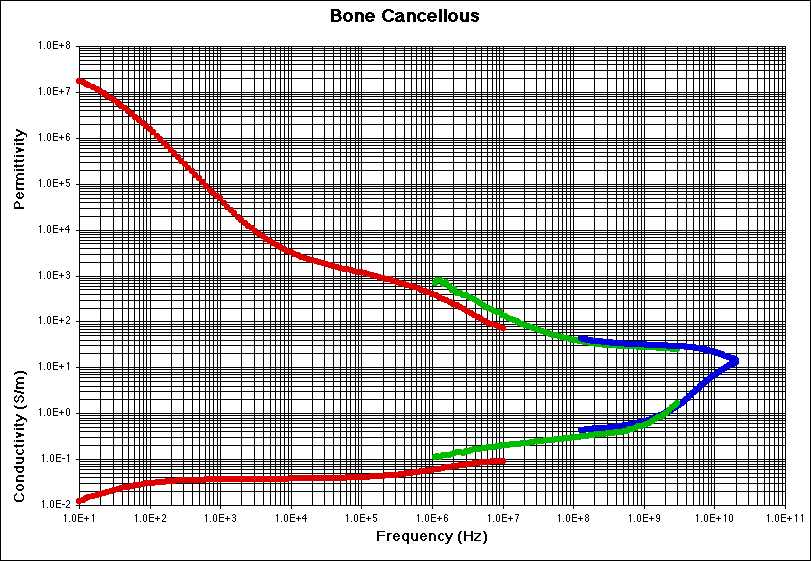

A13: Bone Cancellous

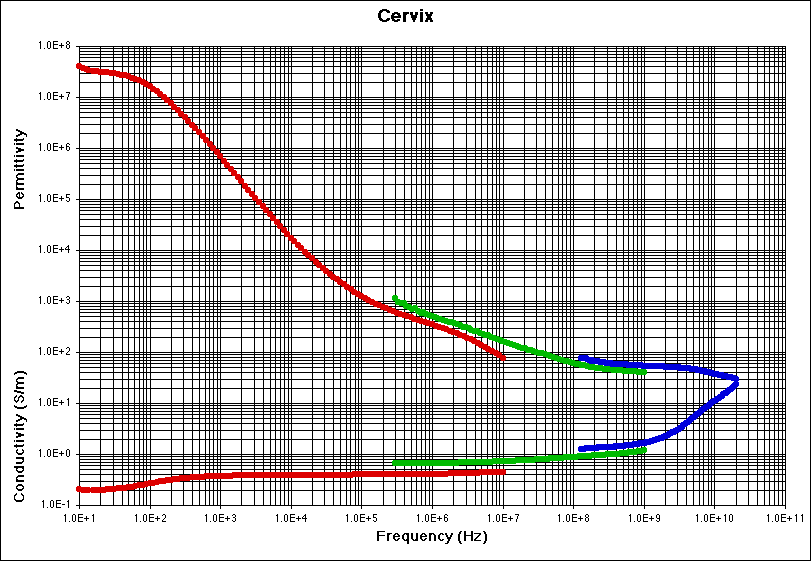

A14: Cervix

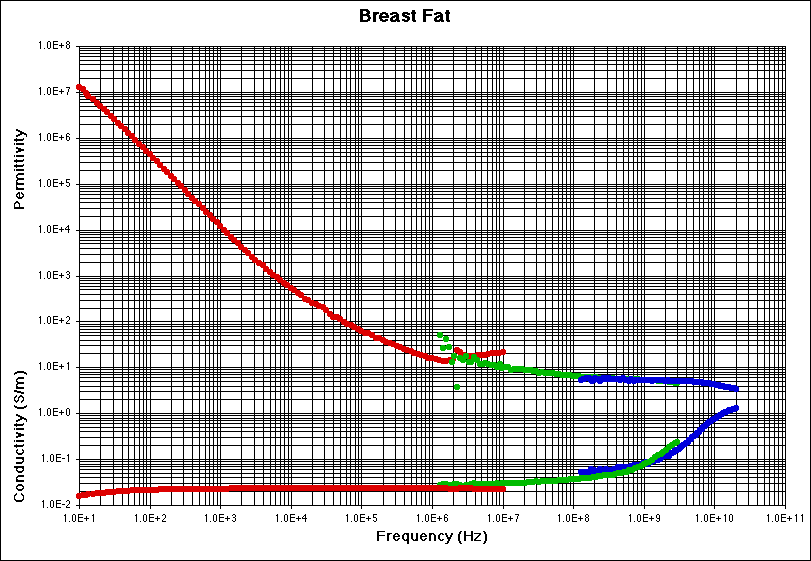

A15: Breast Fat

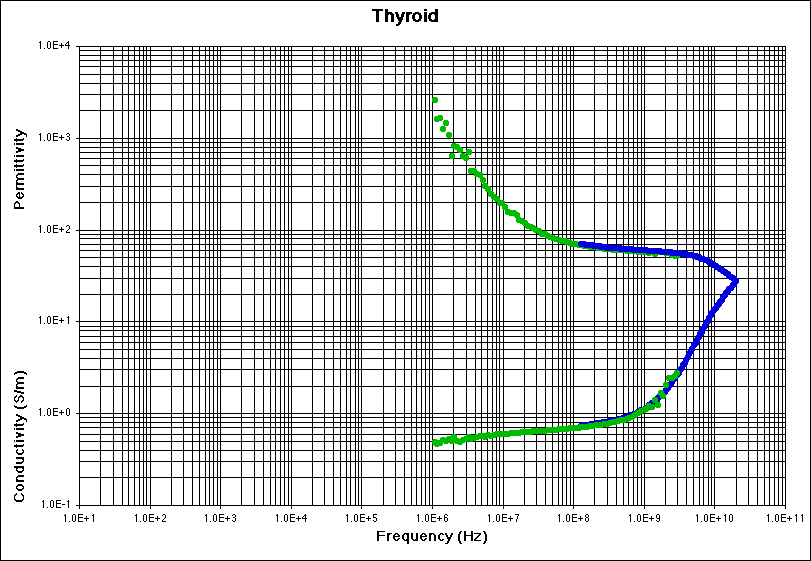

A16: Thyroid

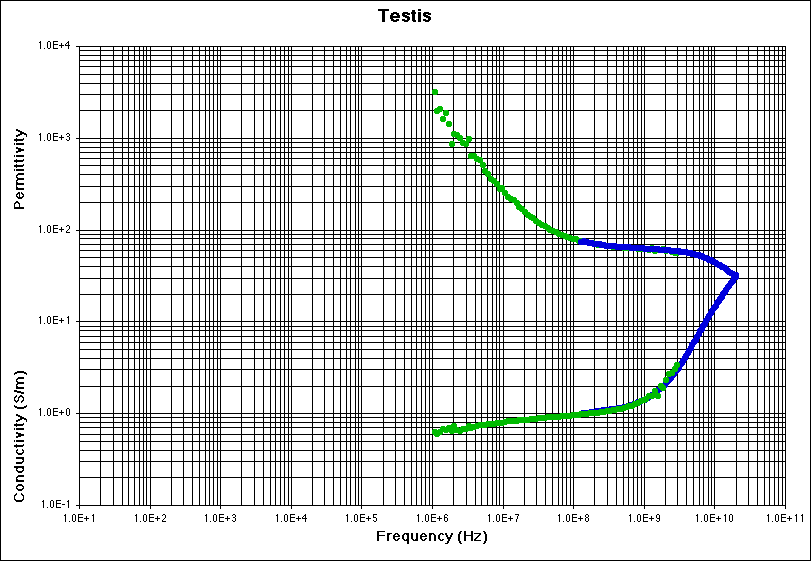

A17: Testis

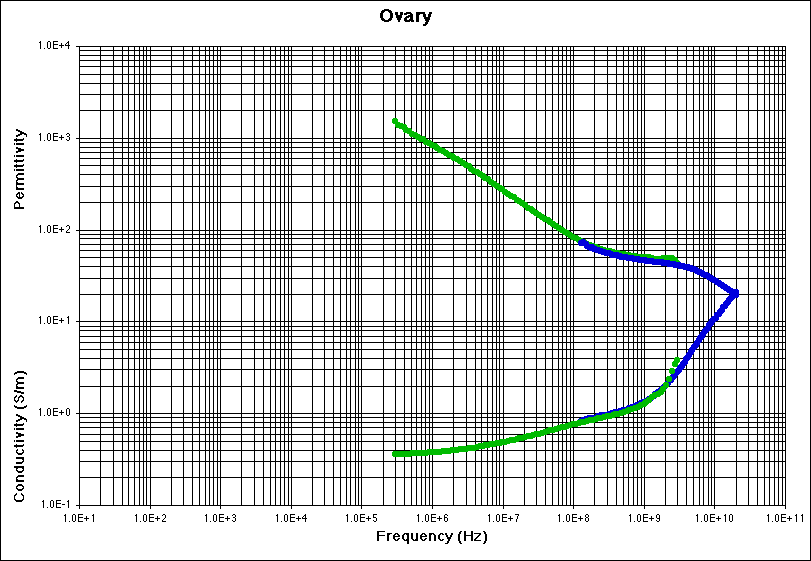

A18: Ovary

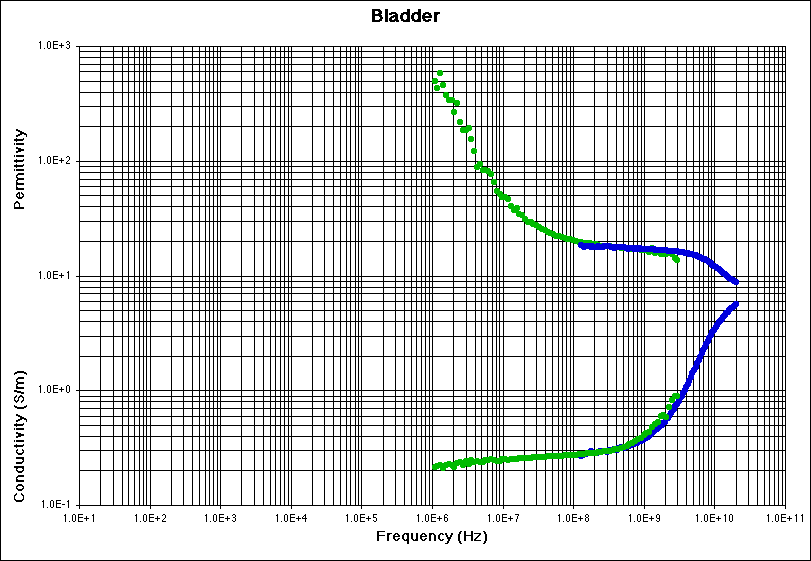

A19: Bladder

TITLE PAGE: Links and information.

REPORT: The Dielectric Properties of Body Tissues

APPENDIX A: Experimental data.

APPENDIX B1: Literature Survey. (Graphs)

APPENDIX B2: Literature Survey. (Data)

APPENDIX C: Modelling the frequency dependence of the dielectric properties to a 4 dispersions spectrum.

APPENDIX D: Tabulation of the experimental data referred to in Appendix C.
